Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

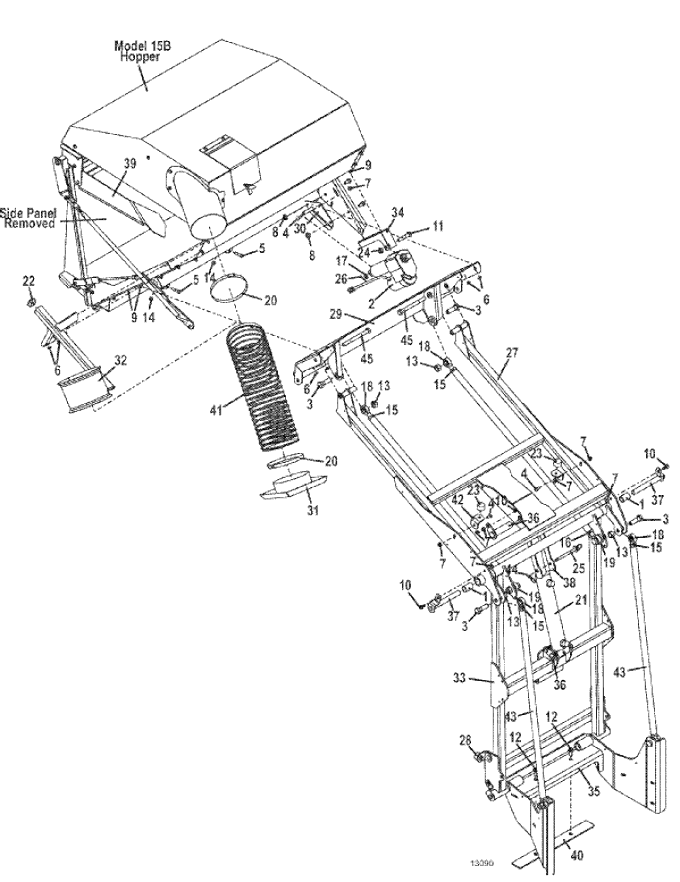

Model 15B HL Mount Kit

High Lift Continued

Model 15B High Lift Mount Kit Continued

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Oilite Bearing

121766

2

Actuator

180023

3

Hex Bolt

243810

4

Carrage Bolt

247130

5

Hex Bolt

243215

6

Whiz Nut

253025

7

Whiz Nut

253035

8

Whiz Nut

253043

9

Truss Whiz Bolt

253177

10

Flanged Hex Whiz Bolt

253192

11

Hex Bolt

243585

12

Flanged Whiz Bolt

253203

13

Lock Nut

253970

14

Nylon Insert Nut

253450

15

Nut

254493

16

Left Handed Jam Nut

254496

17

Washer

257062

18

Rod End

265665

19

Rod End

265666

20

6" Hose Clamp

280345

21

Hydraulic Cylinder

290030

22

Square Plastic Plug (1" diameter)

422065

23

Rubber Bumper

424053

24

Lock Nut

253930

25

Hitch Pin

260412

26

Cotter Pin

260652

27

Upper Arm

645013

28

Bumper with Stud

424056

29

Bracket

645106

30

Bracket

645107

31

Upper Hose Coupler Bracket

645109

32

Hose Guide Bracket

645110

33

Lower Arm

645012

34

Mount

645547

35

Mount

645548

36

Pin

645680

37

Pin

645681

38

Cylinder Lockout Bracket

725693

39

Right Arm

766046

-

Left Arm

766047

40

Hopper Lift Mount Spacer Plate

775136

41

Hose

833505

42

Hopper Lever Stop

732592

43

Rod

882036

44

Hair Pin

260523

-

6" Nylon Lanyard

423190

45

Hex Bolt

243630

46

15B High Lift Hopper Mount Kit 700 / 900 Series

503555
