Model 15B HL Mount Kit

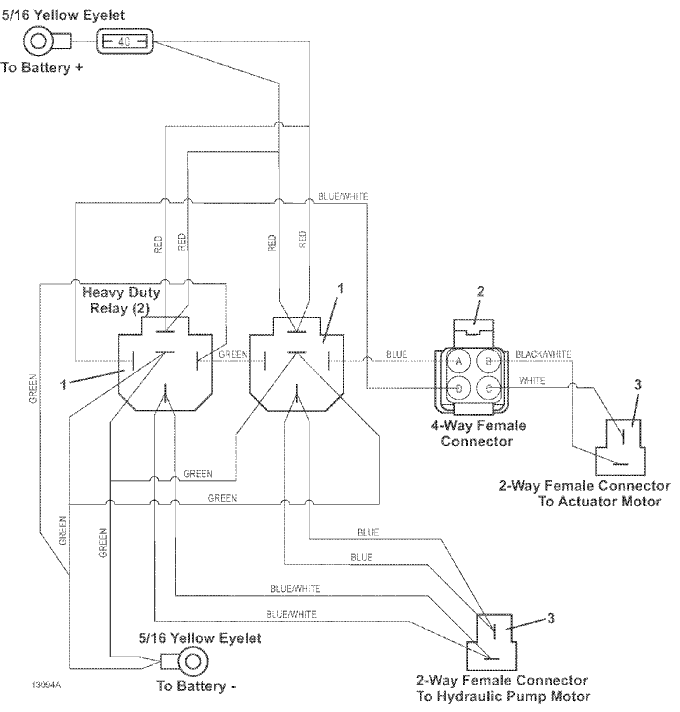

Wiring Diagram
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
12V DC Heavy Duty Relay |
184274 |
2 |
4-Way Female Connector |
184976 |
3 |
2-Way Female Connector |
184917 |
- |
Flex Guard Loom |
422275 |
- |
Flex Guard Loom |
422280 |
- |
Reel Tie |
423148 |
4 |
High Lift Hopper Kit Wiring Assembly |
605982 |
