Genuine OEM Grasshopper® Mower Parts Diagrams

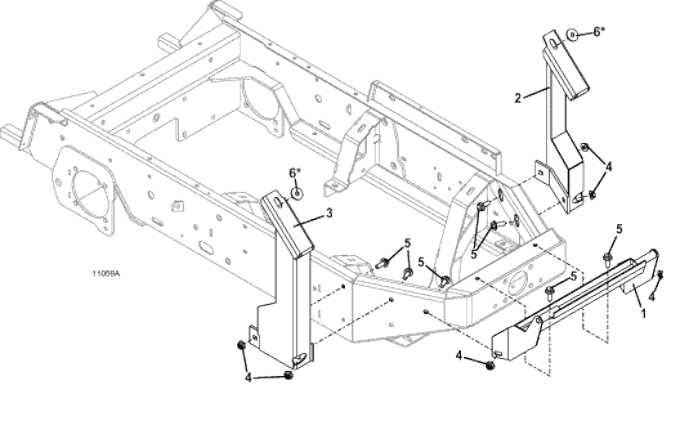

Model 15B Lever Action Mount Kit
700 / 900 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Model 12C / 15B Rear Hopper Mount |
644534 |
2 |
700 / 900 Series 15B Right Mount |
644910 |
3 |
700 / 900 Series 15B Left Mount |
644911 |
4 |
Whiz Nut |
253043 |
5 |
Flanged Whiz Bolt |
253203 |
6 |
Washer |
774020 |
6 |
700 / 900 Series Model 15B Hopper Mount Kit |
503548 |
