Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 25 Lever Action Mount Kit

Trailer Assembly
(2006 & Newer)

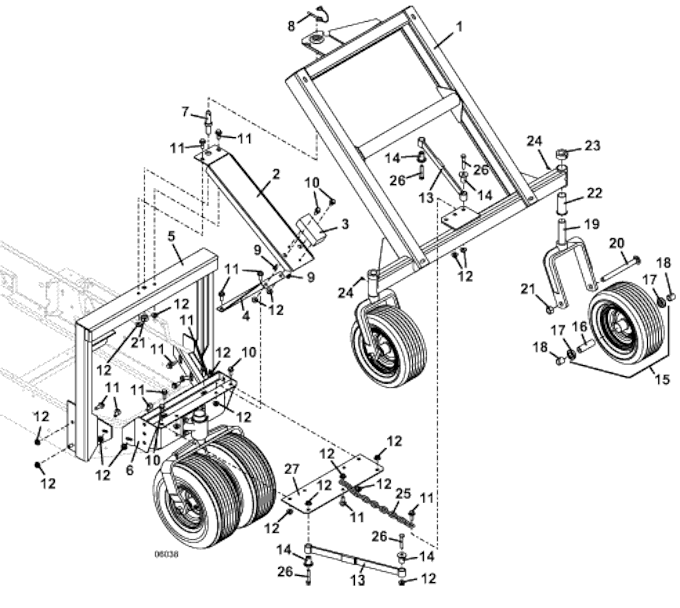

Model 25 Trailer Assembly 2006+

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Model 25 Trailer

643823

2

Block Mount Channel

729512

3

Model 25 Stop Block

822308

4

Channel Support Bracket

729527

5

Fifth Wheel Hitch

644722

6

Weight Mount

643915

7

Link Pin

261660

8

Linch Pin

261624

9

Hex Bolt

243016

10

Whiz Bolt

253200

11

Flanged Whiz Bolt

253203

12

Whiz Nut

253043

13

Model 25 Retainer Strap

420105

14

Retainer Strap Spool

883104

15

Wheel & Tire (with Bearings & Spacer)

483861

-

Tubeless Ribbed Tire

482350

-

Wheel (with Bearing & Spacer)

483301

16

Rear Wheel Bearing Spacer

902475

17

Ball Bearing

120050

18

Axle Spacer

902425

19

Rear Fork

643367

20

Carriage Bolt

247726

21

Lock Nut

253970

22

Flanged Sintered Bushing

833260

23

Collar Set

280440

24

Grease Fitting (Zerk)

280776

25

Safety Chain

820328

26

Hex Bolt

243347

27

Trailer Stop Plate

774287
