Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 35/41

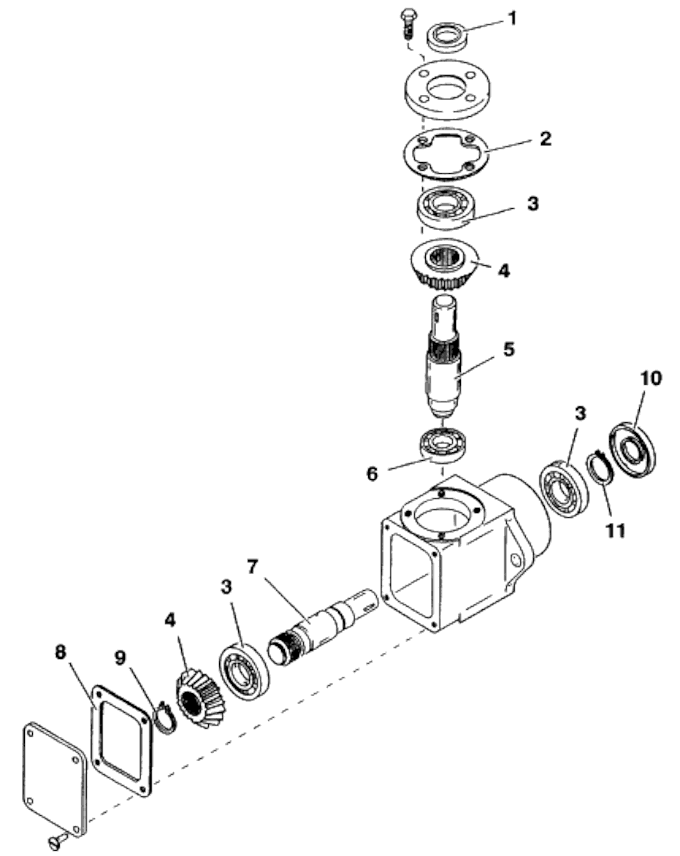

Right Angle Gearbox Assembly

model 35-41 right angle gearbox assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125336

2

Gearbox Cap Gasket

420201

3

Ball Bearing

120071

4

Bevel Gear

392501

5

Shaft 1"

393517

6

Ball Bearing

120065

7

Shaft (.875")

393513

8

Gearbox Cover Gasket

420200

9

External Retainer

263530

10

Seal

125339

11

External Retainer

263540

Assy

Right Angle Gearbox Assembly (Counter Clockwise Rotation)

390021
