Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

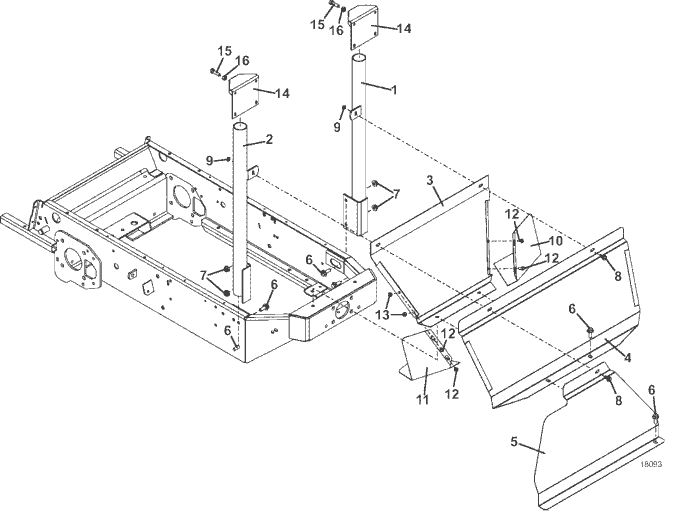

Model 8, 8F, & 12F Triple Bag Mount Kit

600 Series

600 series triple bag mount

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

600T Model 7F Right Frame Support

643884

2

600T Model 7F Left Frame Support

643885

3

Dual Bag Heat Shield

723289

4

600 8/12F Bag Shield

722552

5

600 3 Bag Extension Shield

722557

6

Flanged Whiz Bolt

253203

7

Whiz Nut

253043

8

Hex Flange Whiz Bolt

253192

9

Whiz Nut

253035

10

618 / 620T Right Exhaust Deflector

722398

11

618 / 620T Left Exhaust Deflector

722399

12

Hex Whiz Bolt

253173

13

Whiz Nut

253025

14

Grasscatcher Top Bracket

643115

15

Hex Bolt

243335

16

Nut

254450

Return to Model 8/8F/12F Mount Kit Index Return to Top
