Genuine OEM Grasshopper® Mower Parts Diagrams

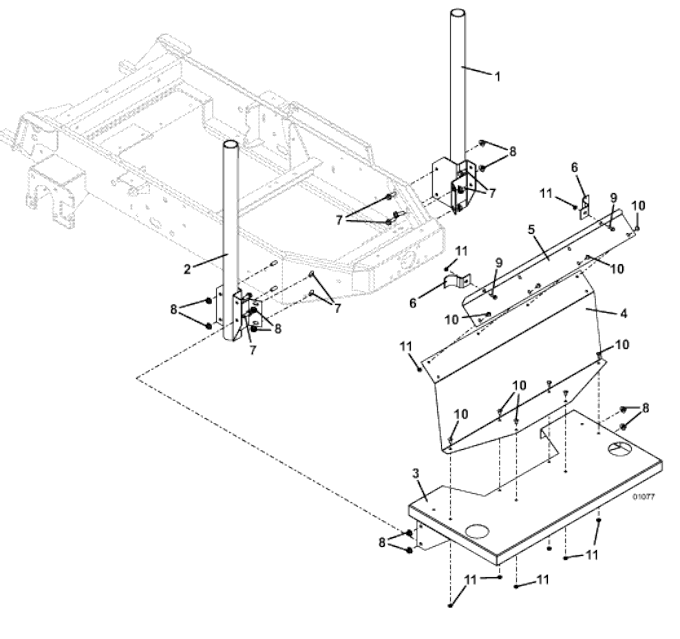

Model 8, 8F, & 12F Vacuum Single Bag Mount Kit
700 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
700 Series Right Bag Mount Support |
643795 |
2 |
700 Series Left Bag Mount Support |
643796 |
3 |
700 Series Grass Bag Platform |
643656 |
4 |
Lower Bag Shield |
722574 |
5 |
Upper Bag Shield |
722269 |
6 |
Bag Shield Clamp |
732335 |
7 |
Flanged Whiz Bolt |
253203 |
8 |
Whiz Nut |
253043 |
9 |
Hex Whiz Bolt |
253175 |
10 |
Truss Whiz Bolt |
253176 |
11 |
Whiz Nut |
253025 |
