Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

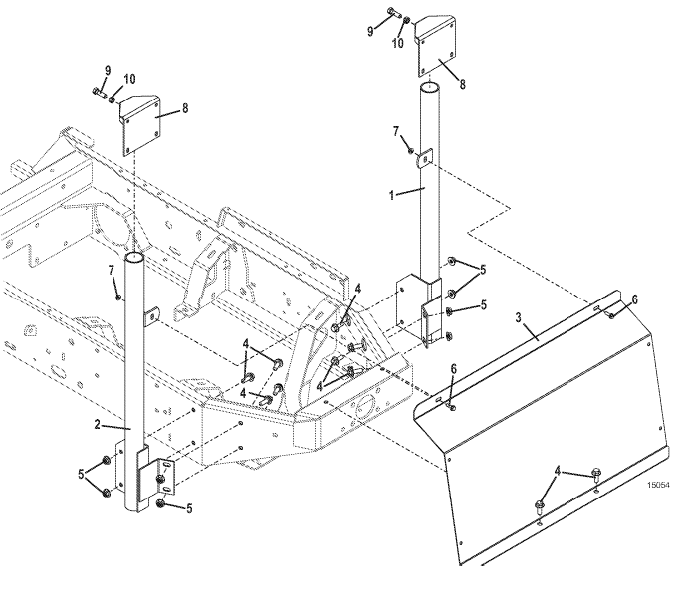

Model 8HT Grasscatcher Mount Kit

700 Series

8ht mount kit for 700 series

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right 700 Bag Mount Support

643854

2

Left 700 Bag Mount Support

643855

3

700 Bag Shield

723373

4

Flanged Whiz Bolt

253203

5

Whiz Nut

253043

6

Hex Whiz Bolt

253175

7

Whiz Nut

253025

8

Grasscatcher Top Bracket

643115

9

Hex Bolt

243335

10

Nut

254450

11

700 Series Vacuum 2 Bag Mount Kit

503586

Return to Model 8HT Mount Kit Index Return to Top
