Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Vacuum and Drive Assembly for FrontMount Mowers

Model 352

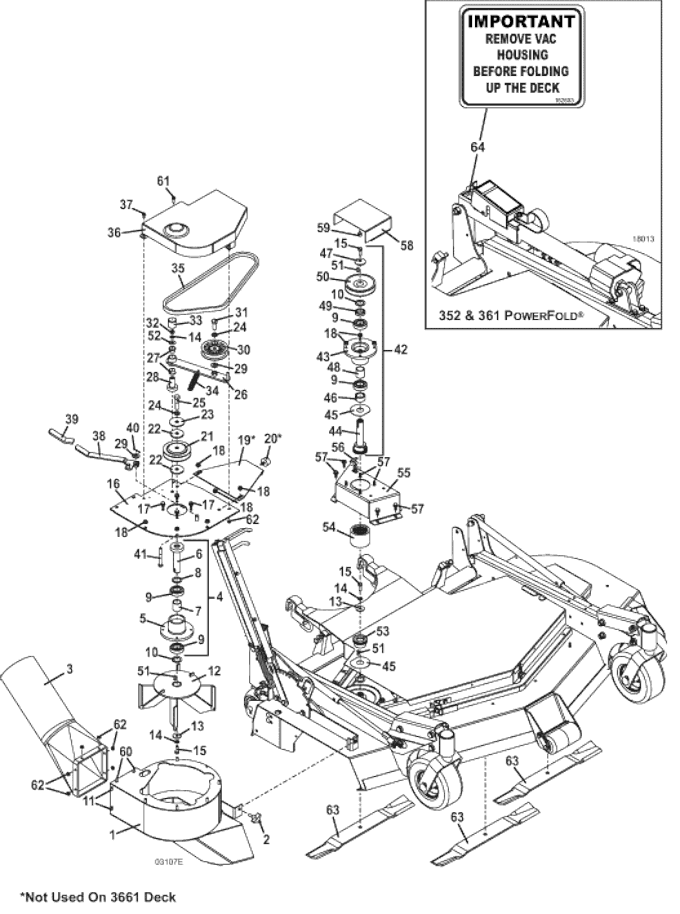

352 Vacuum and Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blower Housing

644335

2

3 Prong HD Deck Stud

252821

3

Hose Adapter Tube

422020

4

Vac Fan Spindle Assembly

604795

5

Vac Fan Spindle Housing

320522

6

Vac Spindle Shaft

604765

7

Drive Bearing Spacer

903650

8

Washer

257106

9

Ball Bearing

110080

10

Washer

257104

11

Truss Whiz Bolt

253176

12

25MM Vacuum Fan

824533

13

Washer

774020

14

Lock Washer

257412

15

Hex Bolt

243331

16

30 Series Vac Blower Top

643858

17

Flanged Hex Whiz Bolt

253191

18

Whiz Nut

253035

19

3352 Vac Stabilizer

754179

-

3/861 Vac Stabilizer

754180

20

Rubber Bumper

424052

21

Sheave

415845

22

Fiber Washer

421200

23

Washer

257061

24

Lock Washer

257432

25

Grade 5 Hex Bolt

243581

26

Vac Idler Arm Assembly with Guide

824479

27

Oilite Bearing

121756

28

Pedestal Bearing

121650

29

Washer

257062

30

Idler

393200

31

Hex Bolt

243565

32

Nut

254450

33

Vinyl Cap

422098

34

Extension Spring

283821

35

Vac Belt (Used on 352)

382753

-

Vac Belt (Used on 361)

382765

36

352 Vac Shield

644045

-

361 Vac Shield

644046

37

Hex Whiz Bolt

253173

38

Belt Tensioner Arm

643042

39

Handle Grip

422150

40

Cotter Pin

260652

41

Hex Bolt

243360

42

352 Vac Drive Spindle Assembly

604782

-

361 Vac Drive Spindle Assembly

604797

43

Spindle Housing

320525

44

98s Vacuum Spindle Shaft Assembly

604766

-

Roll Pin

261061

-

Upper Flex Coupler

831036

-

98S Spindle Shaft

882057

45

Washer

770045

46

Spacer

282630

47

Cupped Washer

257041

48

Drive Bearing Spacer

903650

49

Spacer

282615

50

Sheave (For 352)

414685

-

Sheave (For 361)

414696

51

Square Key

281580

52

Washer

257040

53

Lower Flex Coupler

831039

54

Nylon Coupler Sleeve

388560

55

352 Vac Drive Mount

644203

-

361 Vac Drive Mount

644207

56

Rubber Draw Latch

281300

57

Flanged Hex Whiz Bolt

253192

58

344/48/52/61 Vacuum Drive Shield

643856

59

Rubber Bumper

424015

60

Truss Whiz Bolt

253177

61

Hex Whiz Bolt

253175

62

Whiz Nut

253025

63

18" Medium Lift Blade

320236

-

21" Medium Lift Blade

320242

64

Vac Removal Decal

162603
