Genuine OEM Grasshopper® Mower Parts Diagrams

Vacuum and Drive Assembly for FrontMount Mowers

Model 972
(SN 5499999 & Below)

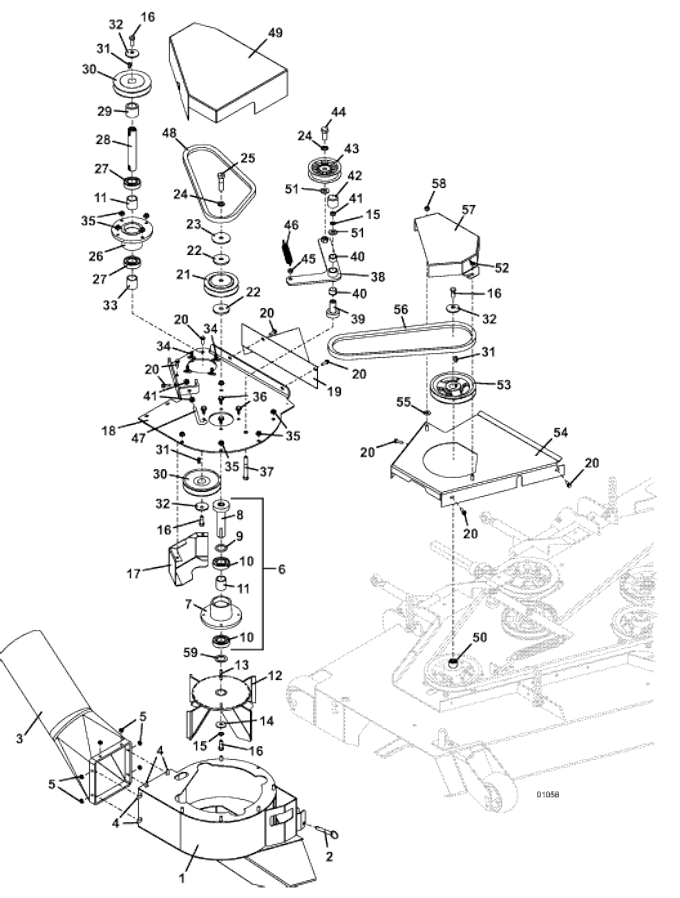

972 Vacuum and Drive Assembly SN 5499999 and Below

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blower Housing

644346

2

Hitch Pin

260400

3

Hose Adapter Tube

422020

4

Truss Whiz Bolt

253177

5

Whiz Nut

253025

6

Vac Fan Spindle Assembly

604795

7

Vac Fan Spindle Housing

320522

8

Vac Spindle Shaft

604765

9

Washer

257106

10

Ball Bearing

110080

11

Drive Bearing Spacer

903650

12

25MM Vacuum Fan

824533

13

Key Square

281583

14

Washer

774020

15

Lock Washer

257412

16

Hex Bolt

243331

17

Drive Belt Shield

644783

18

M1 Vacuum Blower Top

643853

19

M172 Vacuum Belt Guard

722384

20

Hex Whiz Bolt

253175

21

Sheave

415845

22

Fiber Washer

421200

23

Washer

257061

24

Lock Washer

257432

25

Grade 5 Hex Bolt

243581

26

Spindle Housing

320525

27

Ball Bearing

110081

28

M1 Vac Shaft

882093

29

Vac Spindle Spacer

902648

30

Sheave

414696

31

Key Square

281580

32

Cupped Washer

257041

33

Vacuum Spindle Lower Spacer

902645

34

Hex Flange Whiz Bolt

253193

35

Whiz Nut

253035

36

Hex Flange Whiz Bolt

253191

37

Hex Bolt

243365

38

M1 Vac Idler Arm

824537

39

Pedestal Bearing

121650

40

Oilite Bearing

121756

41

Nut

254450

42

Vinyl Cap

422098

43

Idler

393200

44

Hex Bolt

243565

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283820

47

Idler Adjustment J Bolt

730391

48

Belt

382750

49

M1 Blower Belt Shield

644787

50

Spindle Shaft Assembly

604773

51

Washer

257062

52

Nut

254443

53

Sheave

414709

54

9772 Vac Belt Mount Shield

643847

55

Washer

257030

56

Vac Belt

382754

57

M172 Vacuum Drive Shield

722396

58

Nylon Insert Nut

253450

59

Washer

257104
