Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Vacuum and Drive Assembly for FrontMount Mowers

Model 972

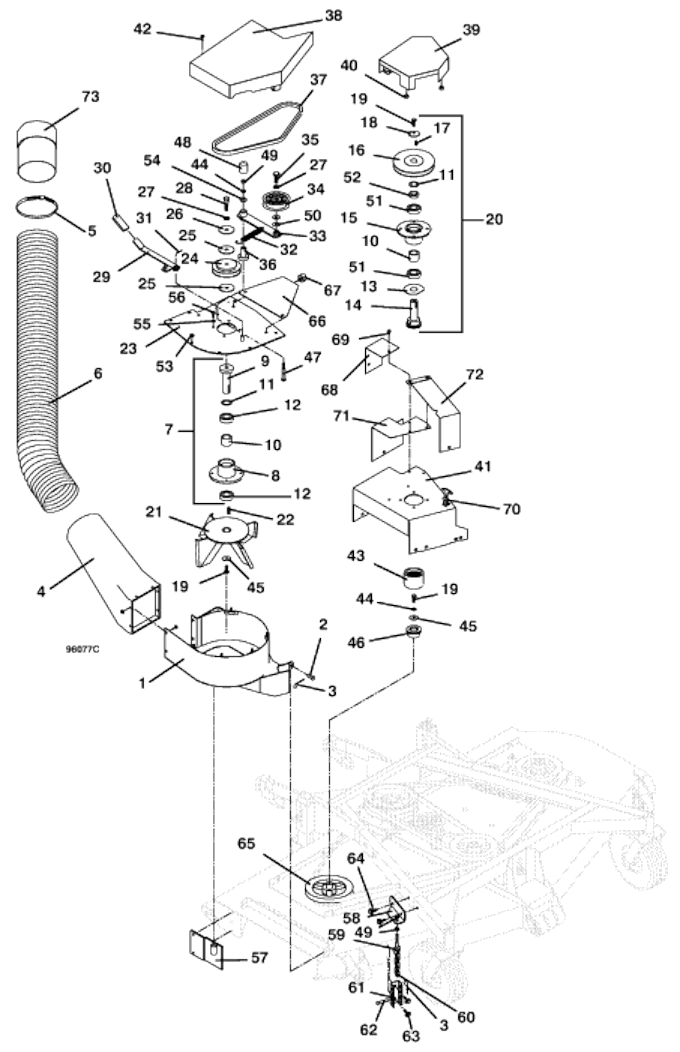

972 Vacuum and Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

9372 Vacuum Fan Housing

643458

2

Clevis Pin

261422

3

Hair Pin

260523

4

Hose Adapter Tube

422020

5

6" Hose Clamp

280345

6

72" Flex Hose

424412

7

Vac Fan Spindle Assembly

604795

8

Vac Fan Spindle Housing

320522

9

Vacuum Spindle Shaft

604765

10

Drive Bearing Spacer

903650

11

Washer

257106

12

Ball Bearing

110080

13

Washer

770045

14

Vacuum Spindle Shaft Assembly

604760

-

Roll Pin

261061

-

Upper Flex Coupler

831036

-

Spindle Shaft

882051

15

Spindle Housing

320525

16

Sheave

414730

17

Key Square

281580

18

Cupper Washer

257041

19

Hex Bolt

243331

20

25MM Vac Drive Spindle Assembly

604792

21

25MM Vacuum Fan

824533

22

Key Square

281583

23

9372 Blower Top

644093

24

Sheave

415845

25

Fiber Washer

421200

26

Washer

257061

27

Lock Washer

257432

28

Grade 5 Hex Bolt

243581

29

Belt Tensioner Arm

643042

30

Handle Grip

422150

31

Cotter Pin

260652

32

Extension Spring

283821

33

Vacuum Idler Arm

824503

-

Oilite Bearing

121758

34

Idler

393200

35

Hex Bolt

243565

36

Pedestal Bearing

121650

37

Belt

382800

38

72 Right Vacuum Shield

644085

39

972 Vac Shield

644084

40

Rubber Bumper

424015

41

9572 Vac Drive Mount

644081

42

Hex Whiz Bolt

253175

43

Nylon Coupler Sleeve

388560

44

Lock Washer

257412

45

Washer

774020

46

Lower Flex Coupler

831039

47

Hex Bolt

243365

48

Vinyl Cap

422098

49

Nut

254450

50

Washer

257062

51

Ball Bearing

110081

52

Spacer

282615

53

Whiz Nut

253035

54

Washer

257040

55

Lock Washer

257402

56

Hex Bolt

243195

57

Vac Mount Bracket

643111

58

72 Carrier Stabilizer Bracket

725041

59

Eye Bolt

240058

60

Lift Chain

820320

61

72 Deck Stabilizer Bracket

724058

62

Clevis Pin

261362

63

Flanged Whiz Bolt

253203

64

Whiz Bolt

253207

65

Sheave

414746

66

972 Stabilizer Plate

729254

67

Rubber Bumper

424052

68

Bearing Mount Corner Shield

722102

69

Hex Whiz Bolt

253173

70

Rubber Draw Latch

281301

71

9372 Shield

722264

72

9372 Front Shield

722139

73

Dual Bag Extension Tube

643314

Return to 972 Vacuum Index Return to Top
