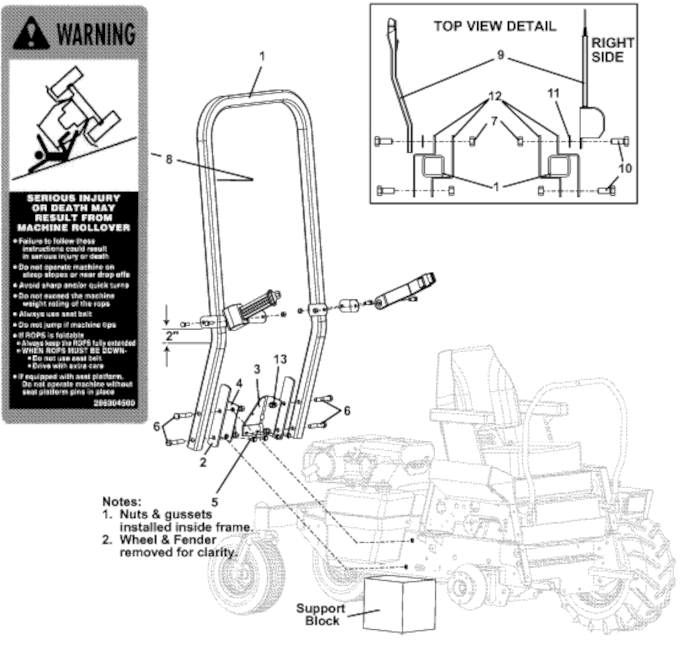

Fold Down Roll Over Protection Structure
700 / 900 Series
Serial Number 5499999 & Below
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
700 /900 ROPS Tube |
324103 |
2 |
700 / 900 ROPS Spacer |
901645 |
3 |
Left ROPS Gusset |
726132 |
4 |
Right ROPS Gusset |
726131 |
5 |
Flanged Whiz bolt |
253203 |
6 |
Hex Bolt |
243840 |
7 |
Lock Nut |
253930 |
8 |
Machine Rollover Warning Decal |
165679 |
9 |
Retractable Black Seat Belt |
324122 |
10 |
Hex Bolt |
243565 |
11 |
Washer |
257062 |
12 |
Seatbelt / ROPS Mount |
724574 |
13 |
Lock Nut |
253970 |
14 |
ROPS Kit 700 Air Cooled Pre 2005 |
533385 |
15 |
ROPS Kit 700 / 900 Water Cooled Pre '05 |
533387 |
