Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Strap Lift • Electric Lift Assembly

2007 and Older

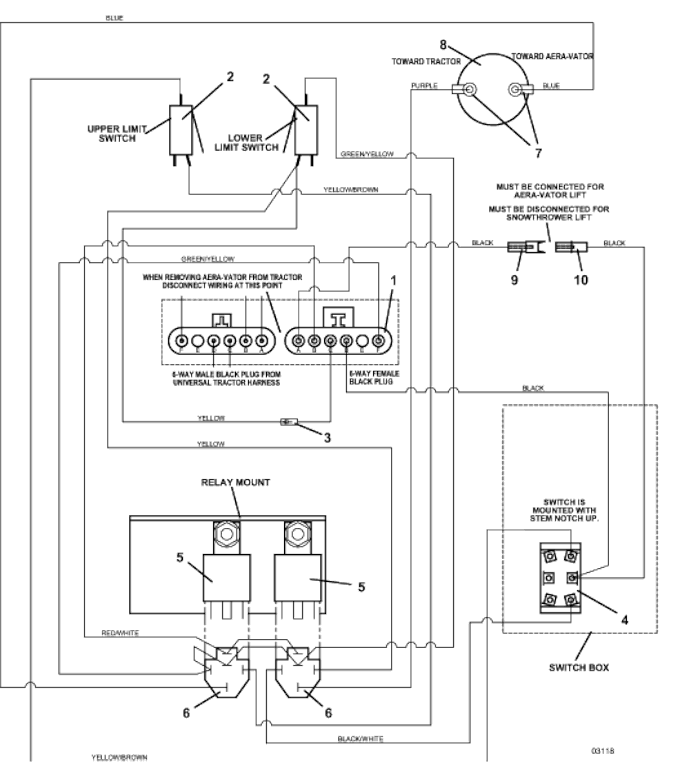

Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

6 Way Female Connector

184969

2

Switch Lever

183855

3

Diode 800V

202105

4

Toggle

184083

-

Toggle Switch Boot

425200

-

Keyed Washer

770005

5

Heavy Duty Relay Assembly

604712

6

5 Way Female Connector

184926

7

Boot

425217

8

Lift Drive Assembly

604515

9

Pin Housing Connector

184913

10

Connector Housing

184912

11

Aeravator Universal WP Wire Group

604903
