Genuine OEM Grasshopper® Mower Parts Diagrams

200V Series MidMount Tractors

Model 12F Catcher with Mount
Part Number 503192

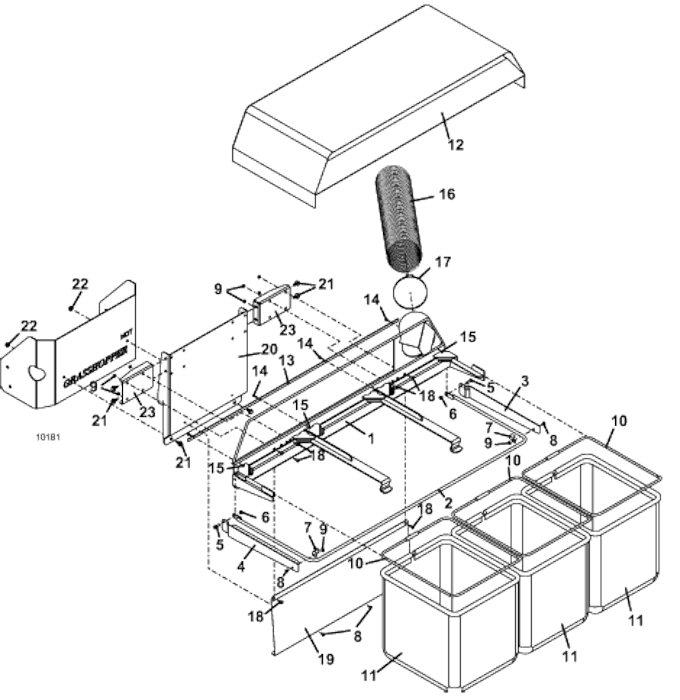

Model 12F Catcher with Mount Part Number 503192 for 200V MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Triple Bag Frame

644299

2

3 Bag Top Hinge

644709

3

Right Cloth Top Shield

723365

4

Left Cloth Top Shield

723366

5

Hex Bolt

243205

6

Nylon Insert Nut

253450

7

Conduit Clip

180630

8

Truss Whiz Bolt

253176

9

Whiz Nut

253025

10

Twin Bag Rod

643723

11

3 Bushel Vac Bag

420003

12

3 Bag White Fabric Catcher Top

420036

13

3 Bag Cover Hold Down Strap

782345

14

Hex Whiz Bolt

253167

15

Nut

254421

16

44" Flex Hose

424398

17

6" Hose Clamp

280345

18

Truss Whiz Bolt

253177

19

M2/200V Catcher Heat Shield

722805

20

200V Catcher Mount Plate

729149

21

Whiz Bolt

253200

22

Whiz Nut

253043

23

12F 200V Bagger Bracket

729653
