Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

300V Series MidMount Tractors

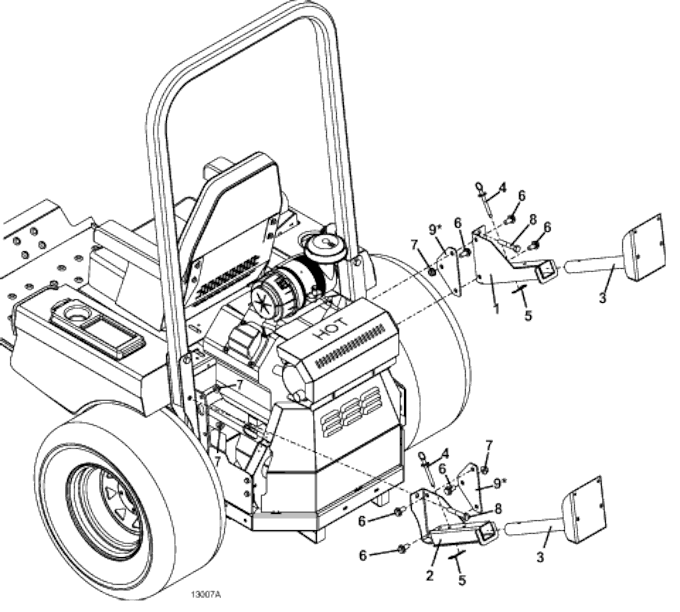

Model 8HT / 12HT Mount Kit

Model 8HT and 12HT Mount Kit for 300V MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right ROPS Catcher Mount

644573

2

Left ROPS Catcher Mount

644574

3

Catcher Mount Tube Assembly

644147

4

Hitch Pin

260405

5

Hair Pin

260525

6

Whiz Bolt

253243

7

Flanged Spiral Lock Nut

253067

8

Hex Bolt

243600

9

300V Bagger Bracket

775303

10

8F/12F Mount Kit

503550
