Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

300V Series MidMount Tractors

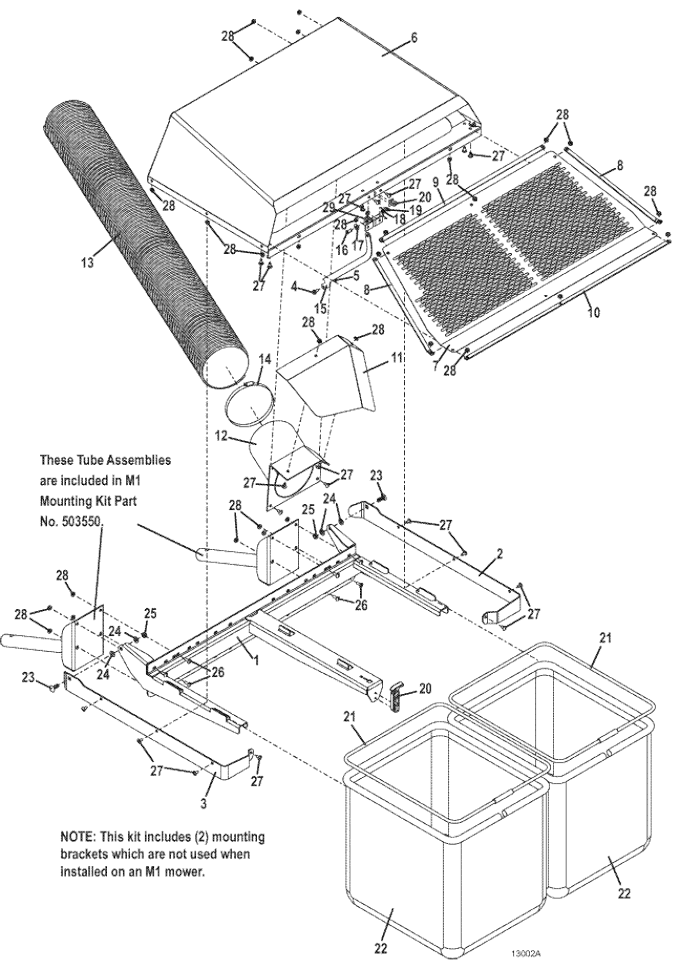

Model 8HT M2 Catcher

Model 8HT M2 Catcher for 300V Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

8HT Bagger Frame

645373

2

Right Top Guard Strap

732623

3

Left Top Guard Strap

732624

4

Hex Whiz Bolt

253173

5

Nylon Insert Nut

253440

6

8HT Collector Top

645830

7

8F/12F HT Fabric Screen

420008

7

8HT/12HT Metal Screen

721389

8

HT Fabric Screen Side Strap

782305

9

HT Fabric Screen Front Strap

782311

10

HT Fabric Screen Rear Strap

782361

11

8HT Inlet Deflector

721331

12

Inlet Tube

645183

13

57" Flex Hose

424408

14

6" Hose Clamp

280345

15

Hard Top Prop

754101

16

Clevis Pin

261279

17

Washer

257020

18

Truss Whiz Bolt

284407

19

Cotter Ring

260606

20

Flexible Draw Latch

281304

21

8/12 HT Bag Rod

645723

22

White Hard Bottom 3 Bushel Bag

420004

22

Black Hard Bottom Vac Bag

420019

23

Carriage Bolt

247253

24

Nylon Washer

257047

25

Nylon Insert Nut

253460

26

Truss Whiz Bolt

253177

27

Truss Whiz Bolt

253176

28

Whiz Nut

253025

29

8/12MTop Prop Bracket

754327
