Genuine OEM Grasshopper® Mower Parts Diagrams
M1 Series MidMount Tractors

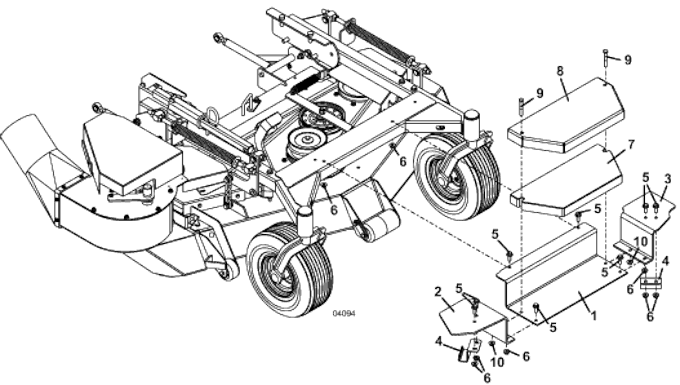

Model 8HT Weight Kit for 48" & 52" Decks
2005 & Newer
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M1 52 Weight Kit Mount |
724696 |
2 |
Right M1 52 Weight Kit Gusset (Used in Kit #503896) |
724623 |
2 |
Right M1 52 Weight Kit Gusset (Used in Kit#503892) |
726200 |
3 |
Left M1 52 Weight Kit Gusset (Used in Kit #503896) |
724624 |
3 |
Left M1 52 Weight Kit Gusset (Used in Kit #503892) |
726201 |
4 |
M1 Weight Kit Clamp |
729337 |
5 |
Flanged Whiz Bolt |
253203 |
6 |
Whiz Nut |
253043 |
7 |
Counterweight |
323951 |
8 |
50 Lb Weight Cover |
729691 |
9 |
Hex Bolt |
243355 |
10 |
Whiz Nut |
253043 |
11 |
M1 52" Weight Mount Kit |
503896 |
12 |
Model 16 M1 52 Weight Mount Kit |
503892 |
13 |
Model 16 50Lb Counterweight Group |
504165 |
