Genuine OEM Grasshopper® Mower Parts Diagrams
M1 Series MidMount Tractors

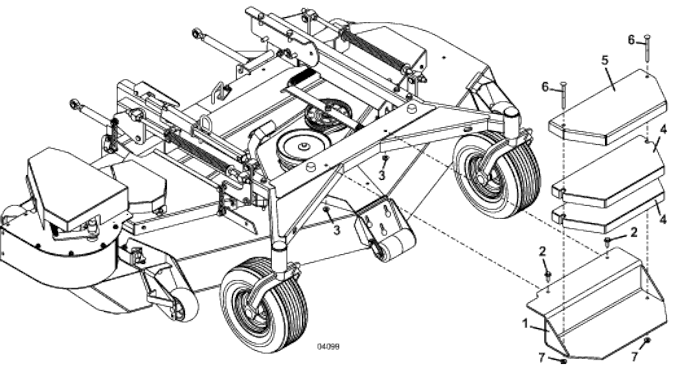

Model 12F Weight Kit for 72" Decks
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
72" Deck Weight Kit Mount |
644825 |
2 |
Flanged Whiz Bolt |
253203 |
3 |
Whiz Nut |
253043 |
4 |
50 Lb Counterweight |
323951 |
5 |
50 Lb Weight Cover |
729691 |
6 |
Carriage Bolt |
247310 |
7 |
Whiz Nut |
253043 |
8 |
Model 16 72" Deck Weight Mount Kit |
503898 |
9 |
Model 16 100 Lb Counterweight Group |
504166 |
