Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

M1 Series MidMount Tractors

Model 8F M1 Catcher
503203

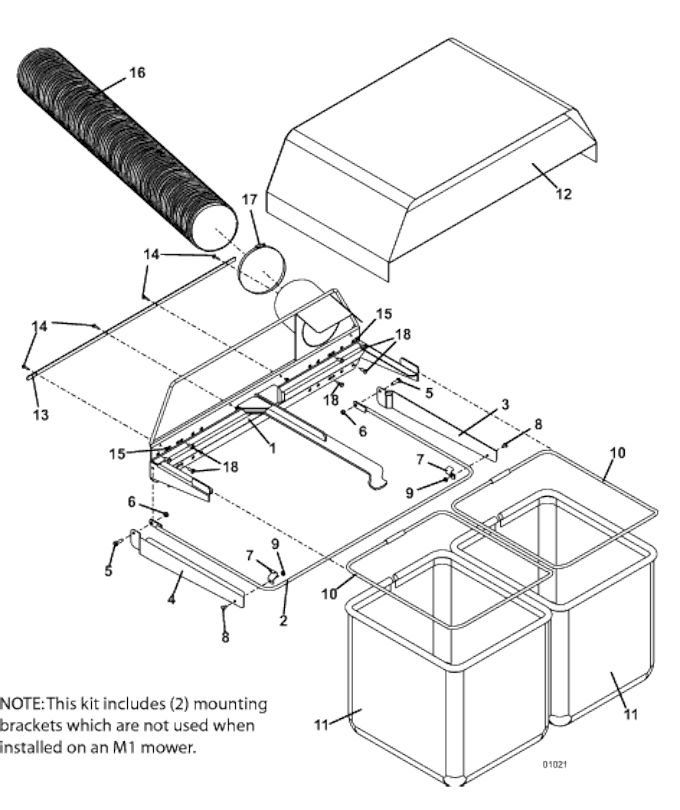

Model 8F Catcher 503203 for M1 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Twin Bag Frame

643373

2

Cloth Top Hinge

643446

3

Right Cloth Top Shield

723365

4

Left Cloth Top Shield

723366

5

Hex Bolt

243205

6

Nylon Insert Nut

253450

7

Conduit Clip

180630

8

Truss Whiz Bolt

253176

9

Whiz Nut

253025

10

Twin Bag Rod

643723

11

3 Bushel Vac Bag

420003

12

White Fabric 2 Bag Catcher Top

420035

13

Cloth Top Hold Down Strap

782336

14

Hex Whiz Bolt

253167

15

Nut

254421

16

57" Flex Hose

424408

17

6" Hose Clamp

280345

18

Truss Whiz Bolt

253177

19

8F Twin Bag Catcher without Mount

503203
