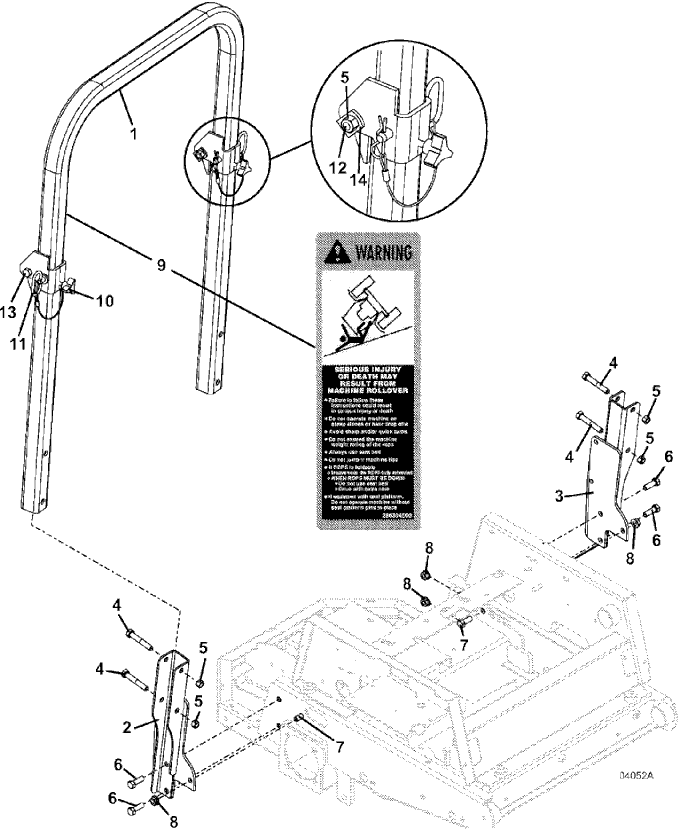

Fold Down Roll Over Protection Structure
200 / 300 Series
Serial Number 5499999 & Below


Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Foldable ROPS Tube

324106

2

Right M1 ROPS Mount

643862

3

Left M1 ROPS Mount

643863

4

Hex Bolt

243600

5

Lock Nut

253930

6

Hex Bolt

243570

7

Hex Bolt

243565

8

Spiral Loc Flanged Nut

253067

9

Machine Rollover Warning Decal

165679

10

3 Prong ROPS Stud

252819

-

Stud

252818

11

Hitch Pin

260430

12

Hex Bolt

243610

13

Hex Bolt

243605

14

ROPS Stop

324085
