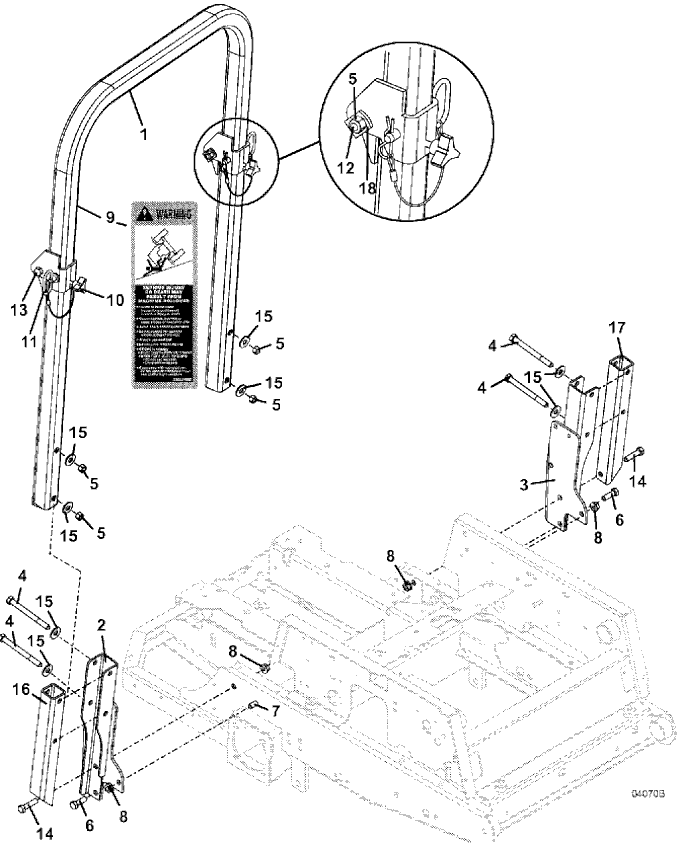

Fold Down Roll Over Protection Structure
400 Series
Serial Number 5499999 & Below


Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Foldable ROPS Tube

324106

2

Right M1 ROPS Mount

643862

3

Left M1 ROPS Mount

643863

4

Hex Bolt

243630

5

Lock Nut

253930

6

Hex Bolt

243570

7

Hex Bolt

243565

8

Spiral Loc Flanged Nut

253067

9

Machine Rollover Warning Decal

165679

10

Hex Bolt

252819

-

Stud

252818

11

Hitch Pin

260430

12

Hex Bolt

243610

13

Hex Bolt

243605

14

Hex Bolt

243575

15

Hardened Washer

257057

16

Right Tube Spacer 400 ROPS

942518

17

Left Tube Spacer 400 ROPS

942519

18

ROPS Stop

324085
