Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

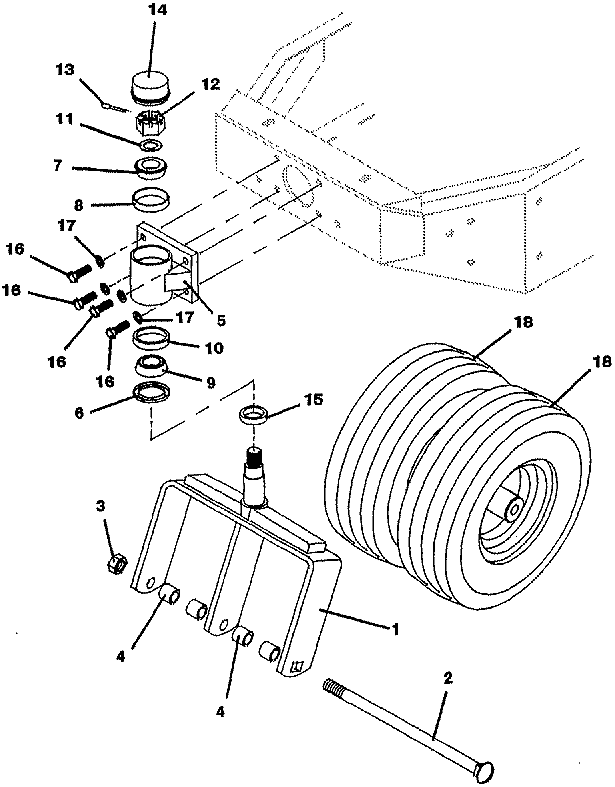

612 • Tail Wheel Options

1991

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604363

2

13" Fork Assembly Bolt

604153

3

Lock Nut

253970

4

Axle Spacer

902425

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Tapered Bearing

122522

8

Bearing Cup

123522

9

Tapered Bearing

122523

10

Bearing Cup

123521

11

14 Ga Bushing Washer

257091

12

Nut

254502

13

Cotter Pin

260668

14

Dust Cap

481432

15

Spacer

830420

16

Hex Bolt

243335

17

Lock Washer

257412

18

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 x 5 x 6 Wheel Tubeless Ribbed Tire

482350

-

6 x 3.25 Tan Wheel with Bearing & Spacer

483301
