Genuine OEM Grasshopper® Mower Parts Diagrams

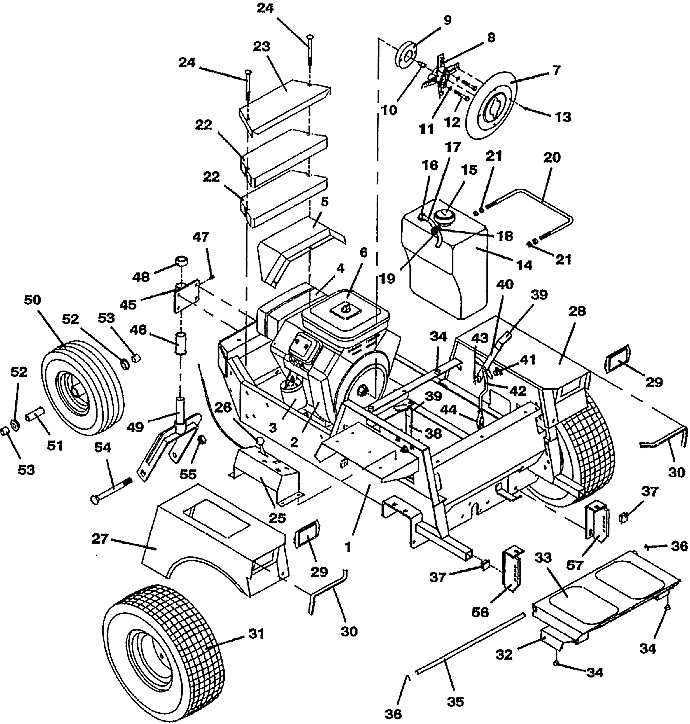

612 • Tractor Assembly
1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
600 Tractor Frame |
643383 |
2 |
12.5hp Briggs & Stratton Engine |
100114 |
3 |
Briggs Oil Filter |
100803 |
4 |
Muffler & Support Assembly |
603592 |
- |
Muffler Bracket |
729119 |
5 |
600 Muffler Shield |
722266 |
6 |
Briggs Air Filter |
100920 |
- |
Briggs & Stratton Precleaner Air Filter |
100921 |
7 |
Intake Screen |
721130 |
8 |
7 inch Booster Fan |
100793 |
9 |
Booster Fan Spacer |
902326 |
10 |
Booster Fan Alignment Pin |
101450 |
11 |
Lock Washer |
257402 |
12 |
Hex Bolt |
243235 |
13 |
No Longer Available |
252044 |
14 |
600 Fuel Tank Assembly |
603810 |
15 |
Fuel Cap |
100210 |
16 |
Fuel Draw Tube |
101830 |
17 |
Fuel Line Hose |
821725 |
18 |
Briggs In-Line Fuel Filter |
366560 |
19 |
Spring Hose Clamp |
280260 |
20 |
600 Fuel Tank Mount |
730450 |
21 |
Nut |
254450 |
22 |
34 lb. Counterweight |
323933 |
23 |
34 lb. Weight Cover Plate |
729514 |
24 |
No Longer Available |
247305 |
26 |
Mechanical Choke Housing |
142210 |
27 |
right 600 Fender |
643338 |
- |
612 right Trim Decal |
163224 |
28 |
left 600 Fender |
643339 |
- |
612 left Trim Decal |
163225 |
29 |
Headlight Filler Panel |
721033 |
30 |
Fender Edge Trim |
822631 |
31 |
18 X 8.5 X 8 Wheel & Turf Tire |
483905 |
- |
18 X 8.5 X 8 Turf Tire |
482452 |
- |
8 X 5.375 4-Bolt Wheel |
483398 |
32 |
600 Foot Rest Assembly |
603344 |
33 |
Foot Rest Tread |
420902 |
34 |
Rubber Bumper |
424015 |
35 |
600 Footrest Pivot Rod |
780659 |
36 |
External Retainer |
263500 |
37 |
Square Plastic Plug |
422065 |
38 |
718 Twin II Throttle Assembly |
603819 |
- |
Control Cable Assembly |
323641 |
- |
Throttle Lever Stop |
722009 |
39 |
Handle Grip |
422150 |
40 |
600 Brake Lever Assembly |
603556 |
41 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
42 |
600 Brake Linkage Rod |
730354 |
43 |
Cotter Pin |
260648 |
44 |
Clevis Yoke |
265537 |
45 |
612 Rear Pivot Housing |
824536 |
46 |
Flanged Sintered Bushing |
833260 |
47 |
Zerk Grease Fitting |
280776 |
48 |
Set Collar |
280440 |
49 |
400 Rear Fork |
643367 |
50 |
13 x 5 x 6 Wheel & Tire with Bearing & Spacer |
483861 |
- |
13 X 5 X 6 Tubeless Ribbed Tire |
482350 |
- |
6 X 3.25 Tan Wheel with Bearing & Spacer |
483301 |
51 |
Rear Wheel Bearing Spacer |
902475 |
52 |
Ball Bearing |
120050 |
53 |
Axle Spacer |
902425 |
54 |
Carriage Bolt |
247725 |
55 |
Lock Nut |
253970 |
56 |
right 600 Attachment Mount |
643131 |
57 |
left 600 Attachment Mount |
643132 |
58 |
612 Decal Set |
603263 |
