Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

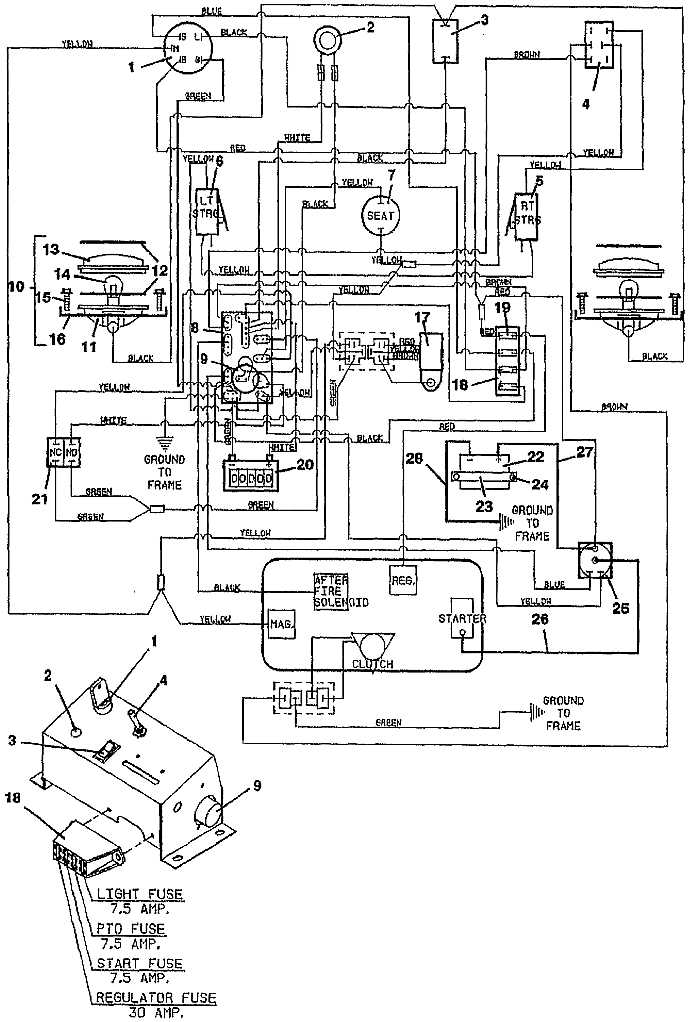

612 • Wiring & Lights

1991

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Indicator Light

182310

3

Rocker Switch

184180

4

PTO Switch & Cover Assembly

604796

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Seat Switch

183870

-

Steering Switch Mount - left

720161

7

Seat Switch

183870

8

612 Wiring Assembly

603911

9

12 volt Flasher

182440

10

Worklamp Assembly (NO LONGER AVAILABLE)

182265

11

Rectangular Lamp Housing

182350

12

Lamp Assembly Gasket

420550

13

Rectangular Lamp Lens

182400

14

Worklamp Light Bulb

182000

15

#10 Screw

252057

16

Worklight Clamp

720163

17

Safety Interlock Relay

200910

18

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

19

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

20

Snap In Hour Meter

141551

-

Hour Meter Mounting Bracket

722028

21

Brake Interlock Switch

183894

22

12 Volt Wet Battery

180125

23

Battery Hold-Down

822410

24

Hex Bolt

243280

-

Hex Bolt

243300

25

4 Post Solenoid Relay Switch

184251

26

11" Red Battery Cable

180309

27

16" Red Battery Cable

180315

-

Starter Terminal Boot

425219

28

20" Black Battery Cable

180280

29

612 Wiring Assembly

603911
