Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

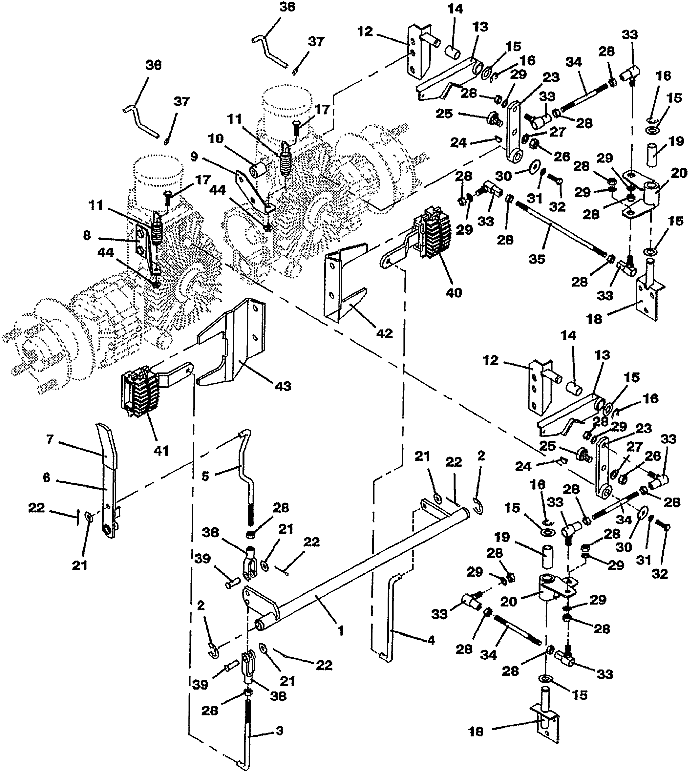

614 • Drive Linkage Assembly

1991

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600 Brake Linkage Pivot

643669

2

External Retainer

263529

3

Steering Linkage Rod

730289

4

Lower left Disc Brake Rod

730355

5

600 Brake Linkage Rod

730354

6

600 Brake Lever Assembly

603556

7

Handle Grip

422150

8

Neutral Return Spring Bracket

729072

9

right Neutral Spring Bracket

729037

10

Drive Mount Plate Spacer

902308

11

Extension Spring

283823

12

Neutral Return Pivot Mount

643603

13

Neutral Return Arm with Bearing

603084

14

Nylon Bearing

422560

15

Washer

257063

16

External Retainer

263500

17

Hex Bolt

243030

18

Control Linkage Pivot

643627

19

Nylon Bearing

422585

20

Linkage Pivot with Bearing

603567

21

Washer

257030

22

Cotter Pin

260624

23

700 Control Arm

643057

24

Woodruff Key

281823

25

Eccentric Roller Assembly

603726

26

Nut

254450

27

Star External Washer

257410

28

Nut

254441

29

Lock Washer

257402

30

Flat Washer

774012

31

Lock Washer

257392

32

Hex Bolt

243030

33

righthand thread Ball Joint

265615

34

Ball Joint Rod

780160

35

Ball Joint Rod

780166

36

Dump Valve Lever

730088

37

Push-On Retainer

262934

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

right Disc Brake

481120

41

left Disc Brake

481121

42

right Disc Brake Mount

725205

43

left Disc Brake Mount

725206

44

Whiz Nut

253025
