Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

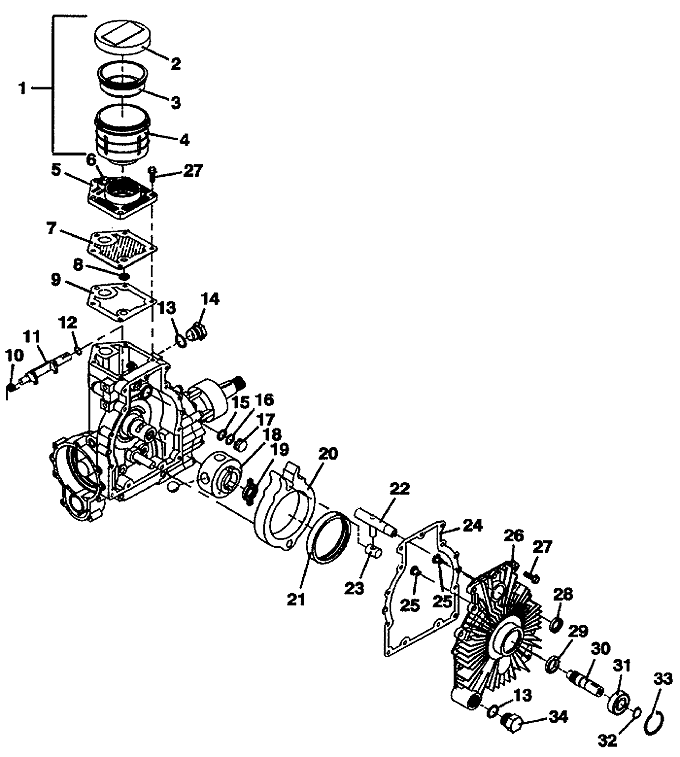

614 • Main Housing Assembly

1991

Main Housing Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Reservoir Assembly - NOT AVAILABLE

421995

2

Reservoir Cap

421998

3

Reservoir Diaphragm - NOT AVAILABLE

421999

4

Reservoir Body

421997

5

NOT AVAILABLE

103734

6

O-Ring Hex Head Plug

103735

7

Oil Filter Assembly w/Gasket - NOT AVAILABLE

603605

8

Oil Filter Grommet

103736

9

Valve Cover Gasket

420343

10

Torsion Spring

284409

11

Dump Valve Bracket

284704

12

O-Ring

126526

13

O-Ring

126537

14

Dump Valve Fitting

103740

15

O-Ring

126530

16

Backup Ring

126636

17

NOT AVAILABLE

000000

18

Pump Rotor Assembly - Non-Charged - NOT AVAILABLE

103778

19

Input Drive

103745

20

Cam Ring Assembly

103777

21

Bearing Cup

123758

22

Control Shaft

103748

23

Cam Ring Insert

103720

24

Pump Cover Gasket

420341

25

Wear Button

103722

26

Wear Plate Kit Cover

604190

27

Machine Screw

250296

28

Seal

125170

29

Seal

125250

30

NOT AVAILABLE

103738

31

Ball Bearing

120054

32

External Retainer

263524

33

Internal Retainer

263175

34

10MB O-Ring Boss Hex Plug

365528
