Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

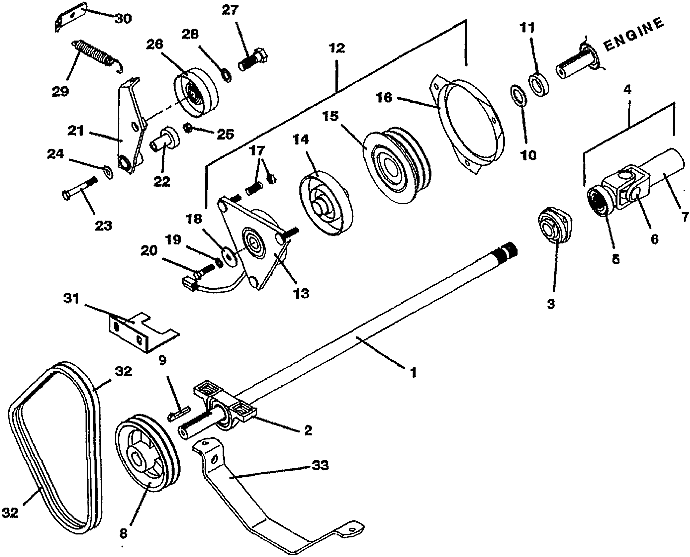

614 • PTO Shaft & Clutch Assembly

1991

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

35.5 Power Shaft

393758

2

Pillowblock SC Bearing

122044

3

2 Bolt Flange Bearing

121425

4

UN Half Sleeve

398914

5

Splined QD Yoke

401019

6

Cross & Bearing

121010

7

Yoke with Sleeve

401015

8

Sheave

415650

9

Square Gib Key

281588

10

Washer

257107

11

Spacer

282622

12

MS 1.00 Clutch Kit Assembly

604180

13

Field Assembly

388796

14

Rotor Assembly

388797

15

Armature with Pulley

388792

16

Brake Drum

388793

17

Spring / Nut Assembly

388791

18

Washer

883801

19

Lock Washer

257412

20

Hex Bolt

243348

21

600 PTO Idler Arm

824504

22

Pedestal Bearing

121650

23

Hex Bolt

243365

24

Washer

257040

25

Nylon Insert Nut

253460

26

Idler

393175

27

Hex Bolt

243805

28

Lock Washer

257452

29

Extension Spring with Swivel

283819

30

Idler Spring Bracket

732835

31

600 Clutch Bracket

724114

32

Belt

381914

33

600 Sheave Guard

725274
