Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

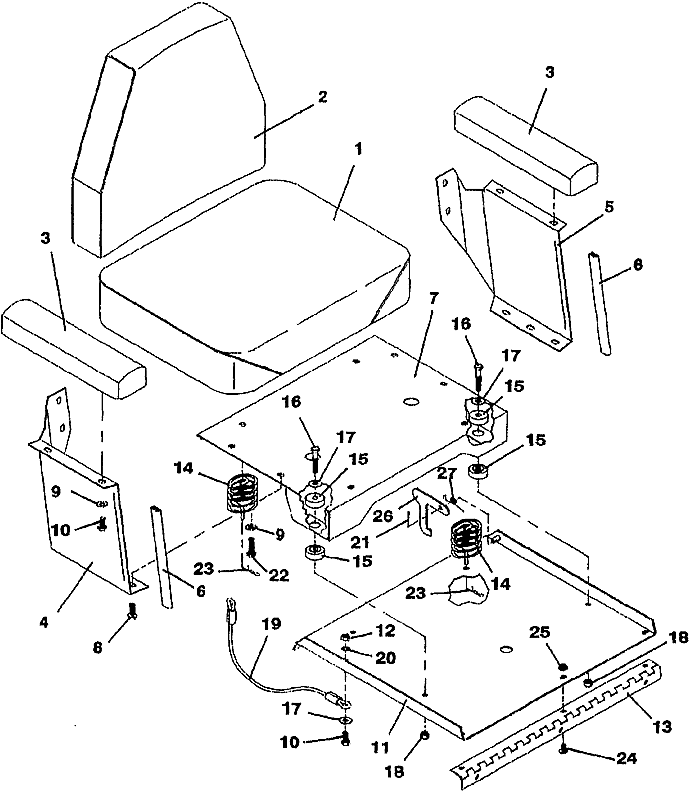

614 • Seat Assembly

1991

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seat Cushion

321516

2

Back Cushion

321511

3

Seat Armrest

321501

4

right Side Seat Member

724310

5

left Side Seat Member

724311

6

Seat Edge Trim

822630

7

Seat Bottom Panel with SW

643664

8

Hex Flange Whiz Bolt

253193

9

Star External Washer

257410

10

Hex Bolt

243195

11

600 Seat Support

643806

12

Nut

254440

13

700 Seat Hinge

820166

14

Compression Spring

283515

15

Step Bushing

257037

16

Hex Bolt

243215

17

Washer

257030

18

Nylon Insert Nut

253450

19

Seat Cable Assembly

323568

20

Lock Washer

257402

21

Cotter Pin

260648

22

Hex Bolt

243210

23

Hair Pin

260520

24

Truss Whiz Bolt

253176

25

Whiz Nut

253025

26

Seat Latch

774248

27

Torsion Spring

284407

21

600 Seat Assembly

603757

return to 614 index return to top of page
