Genuine OEM Grasshopper® Mower Parts Diagrams

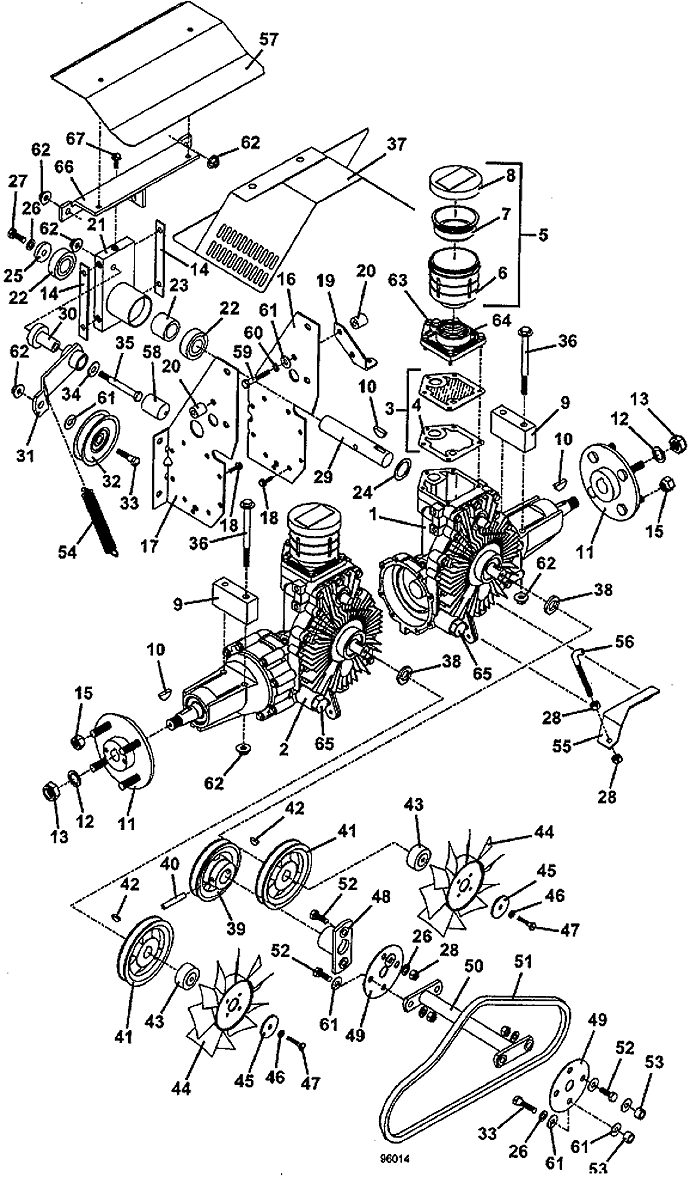

614 • Drive Assembly
1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
right Non-Charge Transaxle with Brake |
391213 |
2 |
left Non-Charge Transaxle with Brake |
391212 |
3 |
Oil Filter Assembly with Gasket |
603605 |
4 |
Valve Cover Gasket |
420343 |
5 |
Reservoir Assembly |
421995 |
6 |
Reservoir Body |
421997 |
7 |
Reservoir Diaphragm |
421999 |
8 |
Reservoir Cap |
421998 |
9 |
Transmission Spacer |
901740 |
10 |
Woodruff Key |
281845 |
11 |
4-Bolt Hub Assembly |
603423 |
- |
Wheel Stud Bolt |
248570 |
12 |
Washer |
257091 |
13 |
Nylon Insert Nut |
253501 |
14 |
Spindle Plate Shim |
900130 |
15 |
Lug Nut |
254472 |
16 |
right Transaxle Mount Plate |
724281 |
17 |
left Transaxle Mount Plate |
724280 |
18 |
Hex Flange Whiz Bolt |
253174 |
19 |
right Neutral Spring Bracket |
729037 |
20 |
Drive Mount Plate Spacer |
902307 |
21 |
600 Drive Spindle Housing |
824538 |
22 |
2 Reg Seal 25mm Ball Bearing |
110081 |
23 |
Drive Bearing Spacer |
903650 |
24 |
Washer |
257106 |
25 |
Washer |
883801 |
26 |
Lock Washer |
257412 |
27 |
Hex Bolt |
243331 |
28 |
Nut |
254450 |
29 |
600 Trans Drive Shaft |
882113 |
30 |
Pedestal Bearing |
121650 |
31 |
600 Drive Idler Arm |
824505 |
32 |
Idler |
393165 |
33 |
Hex Bolt |
243340 |
34 |
Washer |
257040 |
35 |
Hex Bolt |
243375 |
36 |
Flange Bolt |
253215 |
37 |
600 Intake Shield with Decal |
693778 |
38 |
Washer |
775002 |
39 |
Sheave |
414444 |
40 |
Roll Pin |
261061 |
41 |
Sheave |
415540 |
42 |
Woodruff Key |
281829 |
43 |
Fan Spacer |
423724 |
44 |
7" counter-clockwise Nylon Fan |
320856 |
45 |
Flat Washer |
774023 |
46 |
Lock Washer |
257392 |
47 |
Hex Bolt |
243045 |
48 |
Flex Coupling Hub |
824550 |
49 |
Flex Coupling Disc |
821530 |
50 |
Coupling Connector |
643202 |
51 |
Belt |
382627 |
52 |
Hex Bolt |
243330 |
53 |
Spacer |
902280 |
54 |
Extension Spring |
283842 |
55 |
right Idler Spring Bracket |
724089 |
56 |
Idler Adjustment J Bolt |
730391 |
57 |
600 Drive Spindle Shield with DPR |
693767 |
58 |
Vinyl Cap |
422098 |
59 |
Hex Bolt |
243225 |
60 |
Lock Washer |
257402 |
61 |
Washer |
257030 |
62 |
Whiz Nut |
253043 |
63 |
O-Ring Hex Head Plug |
103735 |
64 |
Valve Cover |
103734 |
65 |
10MB O-Ring Boss Hex Plug |
365528 |
66 |
600 Steering Shock Mount |
643849 |
67 |
Hex Flange Whiz Bolt |
253192 |
