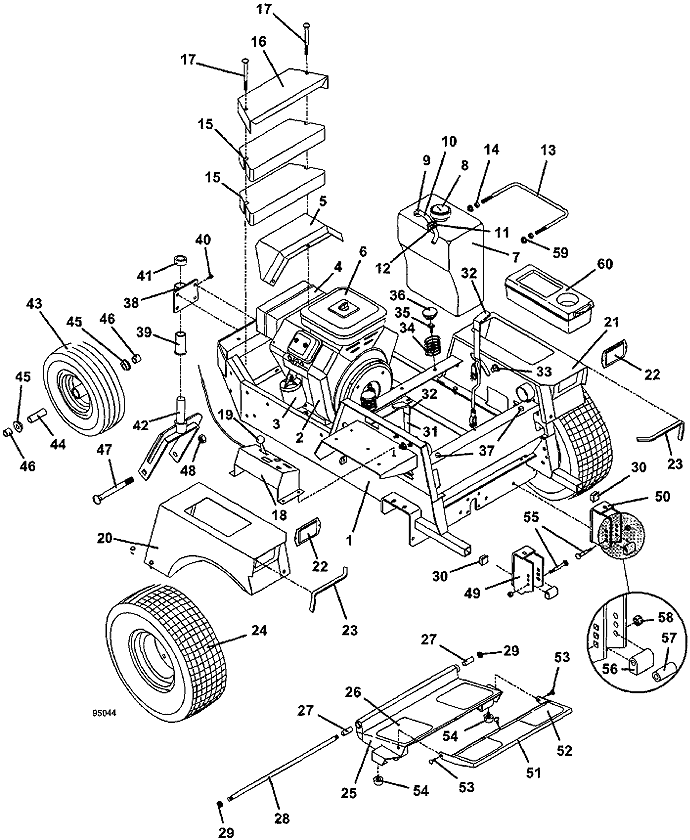

614 • Tractor Assembly
1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
600 Lower Frame |
643835 |
- |
600 97 Upper Frame |
643838 |
2 |
14hp Briggs & Stratton Vanguard Engine |
100115 |
3 |
Briggs Oil Filter |
100803 |
4 |
Muffler & Support Assembly |
603592 |
- |
Vanguard Heat Shield |
729196 |
5 |
600 Muffler Shield |
722266 |
6 |
Briggs Air Filter |
100920 |
- |
Briggs & Stratton Precleaner Air Filter |
100921 |
7 |
600 Fuel Tank Assembly |
603810 |
8 |
Fuel Cap |
100210 |
9 |
Fuel Draw Tube |
101830 |
10 |
Fuel Line Hose |
821725 |
11 |
Briggs In-Line Fuel Filter |
366560 |
12 |
Spring Hose Clamp |
280260 |
13 |
600 Fuel Tank Mount |
730450 |
14 |
Nut |
254450 |
15 |
34 lb. Counterweight |
323933 |
16 |
34 lb. Weight Cover Plate |
729514 |
17 |
Carriage Bolt |
247325 |
18 |
600 Console Panel with Decal |
693110 |
19 |
Mechanical Choke Housing |
142210 |
20 |
600S right Fender with Decals |
693202 |
- |
614 right Trim Decal |
163222 |
21 |
600S left Fender with Decals |
693203 |
- |
614 left Trim Decal |
163223 |
22 |
Headlight Filler Panel |
721033 |
23 |
Fender Edge Trim |
822631 |
24 |
18 X 8.5 X 8 Wheel & Turf Tire |
483905 |
- |
18 X 8.5 X 8 Turf Tire |
482452 |
- |
8 X 5.375 4-Bolt Wheel |
483398 |
25 |
600 Adjustable Foot Platform |
604347 |
26 |
Foot Rest Tread |
420905 |
27 |
Nylon Bearing |
422615 |
28 |
600 Footrest Pivot Rod |
780656 |
29 |
Nylon Insert Nut |
253470 |
30 |
1 inch ID Square Plastic Plug |
422065 |
31 |
614/616 Throttle Assembly |
603852 |
- |
Control Cable Assembly |
323640 |
- |
Throttle Lever Stop |
722009 |
32 |
Handle Grip |
422150 |
33 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
34 |
Compression Spring |
283516 |
35 |
Whiz Flange Bolt |
253203 |
36 |
Seat Spring Cap |
422127 |
37 |
Rubber Bumper |
424015 |
38 |
612 Rear Pivot Housing |
824536 |
39 |
Flanged Sintered Bushing |
833260 |
40 |
Zerk Grease Fitting |
280776 |
41 |
Collar Set |
280440 |
42 |
400 Rear Fork |
643367 |
43 |
13 x 5 x 6 Wheel & Tire with Bearing & Spacer |
483861 |
- |
13 X 5 X 6 Tubeless Ribbed Tire |
482350 |
- |
6 X 3.25 Tan Wheel with Bearing & Spacer |
483301 |
44 |
Rear Wheel Bearing Spacer |
902475 |
45 |
Ball Bearing |
120050 |
46 |
Axle Spacer |
902425 |
47 |
Carriage Bolt |
247725 |
48 |
Lock Nut |
253970 |
49 |
600 right QD Deck Mount |
643097 |
50 |
600 left QD Deck Mount |
643098 |
51 |
600 Foot Platform Extension |
603300 |
52 |
Footrest Extension Tread |
420904 |
53 |
Carriage Bolt |
247130 |
54 |
Rubber Bumper |
424052 |
55 |
Special Carriage Bolt |
247280 |
56 |
Deck Mount Bushing |
282575 |
57 |
Floating Deck Mount Bushing |
282576 |
58 |
Nylon Insert Nut |
253460 |
59 |
Whiz Nut |
253043 |
60 |
Tool Box |
422040 |
61 |
Decal Set for 614 |
603261 |
