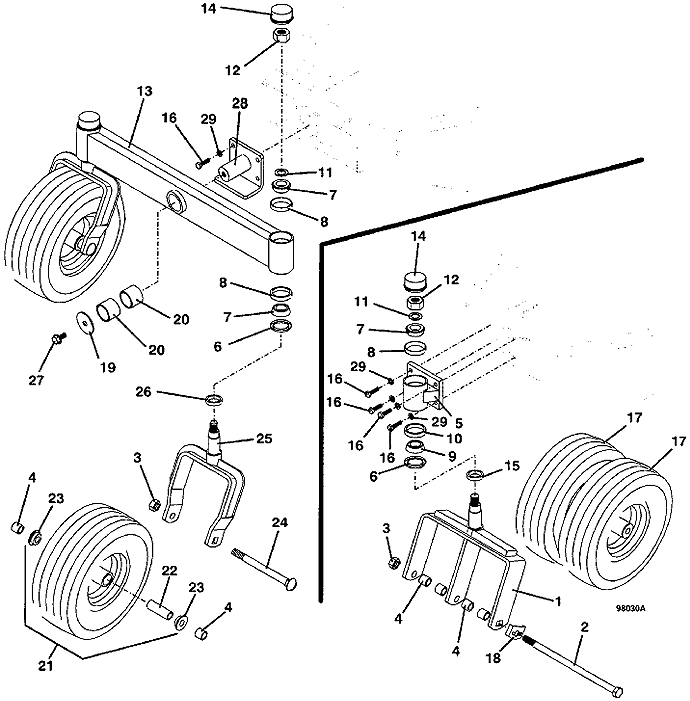

Genuine OEM Grasshopper® Mower Parts Diagrams
614 • Tail Wheel Options
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Dual Fork & Lock Nut Assembly |
604363 |
2 |
Hex Bolt |
243920 |
3 |
Lock Nut |
253970 |
4 |
Axle Spacer |
902425 |
5 |
Dual Fork Pivot Housing Assembly |
604595 |
6 |
Seal |
125855 |
7 |
Taper Bearing |
122522 |
8 |
Bearing Cup |
123522 |
9 |
Taper Bearing |
122523 |
10 |
Bearing Cup |
123521 |
11 |
14 Ga Bushing Washer |
257091 |
12 |
Lock Nut |
253992 |
13 |
Dual Wheel Beam |
824510 |
14 |
Dust Cap |
481432 |
15 |
Spacer |
830420 |
16 |
GR 8 Hex Bolt |
243344 |
17 |
13 x 5 x 6 Wheel & Tire with Bearing & Spacer |
483861 |
- |
13 x 5 x 6 Wheel Tubeless Ribbed Tire |
482350 |
- |
6 x 3.25 Tan Wheel with Bearing & Spacer |
483301 |
18 |
Fork Bolt Lock |
723008 |
19 |
Washer |
257061 |
20 |
Reamed Oilite Bearing |
833275 |
21 |
13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer |
483865 |
22 |
Rear Wheel Bearing Spacer |
902475 |
23 |
Ball Bearing |
120050 |
24 |
Carriage Bolt |
247725 |
25 |
Fork & Lock Nut Assembly |
604365 |
26 |
Spacer |
282615 |
27 |
Whiz Bolt |
253243 |
28 |
Rear Axle Pivot Assembly |
604597 |
29 |
Lock Washer |
257412 |
