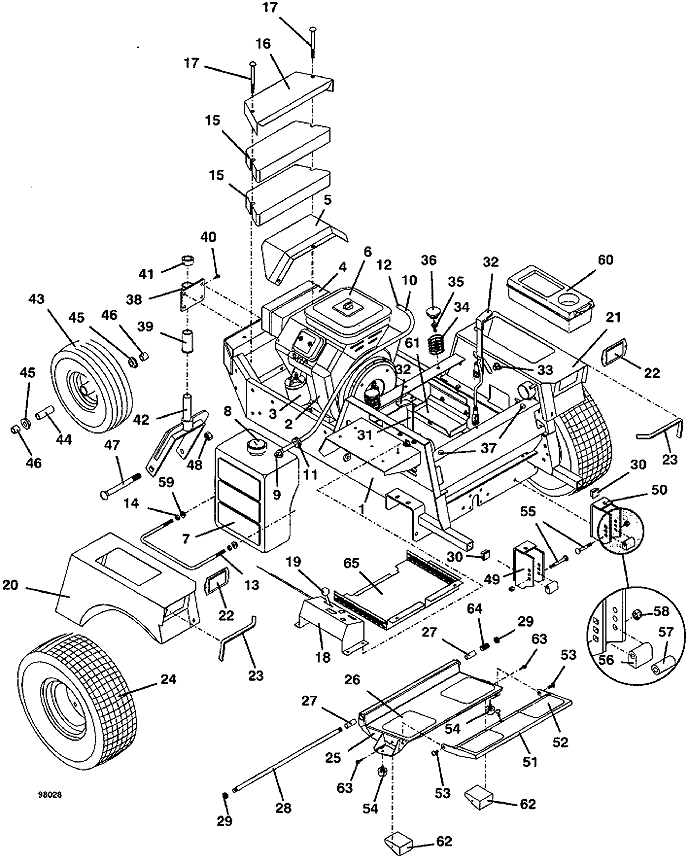

1

600 Lower Frame

643835

-

600 97 Upper Frame

643838

2

14hp Briggs & Stratton Vanguard Engine

100115

3

Briggs Oil Filter

100803

4

Muffler & Support Assembly

603592

-

Vanguard Heat Shield

729196

5

600 Muffler Shield

722266

6

Briggs Air Filter

100920

-

Briggs & Stratton Precleaner Air Filter

100921

7

600 Fuel Tank Assembly

603810

8

Fuel Cap

100210

9

Fuel Draw Tube

101830

10

Fuel Hose

821738

11

Briggs In-Line Fuel Filter

366560

12

Spring Hose Clamp

280260

13

600 Fuel Tank Mount

730450

14

Nut

254450

15

34 lb. Counterweight

323933

16

34 lb. Weight Cover Plate

729514

17

Carriage Bolt

247325

18

600 Console Panel with Decal

693110

19

Mechanical Choke Housing

142210

20

600S right Fender with Decals

693202

-

614 right Trim Decal

163222

21

600S left Fender with Decals

693203

-

614 left Trim Decal

163223

22

Headlight Filler Panel

721033

23

Fender Edge Trim

822631

24

18 X 8.5 X 8 Wheel & Turf Tire

483905

-

18 X 8.5 X 8 Turf Tire

482452

-

8 X 5.375 4-Bolt Wheel

483398

25

600 Adjustable Foot Platform

604347

26

Foot Rest Tread

420905

27

Nylon Bearing

422615

28

600 Footrest Pivot Rod

780656

29

Nylon Insert Nut

253470

30

1 inch ID Square Plastic Plug

422065

31

614/616 Throttle Assembly

603852

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

32

Handle Grip

422150

33

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

34

Compression Spring

283516

35

Whiz Flange Bolt

253203

36

Seat Spring Cap

422127

37

Rubber Bumper

424015

38

612 Rear Pivot Housing

824536

39

Flanged Sintered Bushing

833260

40

Zerk Grease Fitting

280776

41

Collar Set

280440

42

400 Rear Fork

643367

43

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 X 5 X 6 Tubeless Ribbed Tire

482350

-

6 X 3.25 Tan Wheel with Bearing & Spacer

483301

44

Rear Wheel Bearing Spacer

902475

45

Ball Bearing

120050

46

Axle Spacer

902425

47

Carriage Bolt

247725

48

Lock Nut

253970

49

600 right QD Deck Mount

643097

50

600 left QD Deck Mount

643098

51

600 Foot Platform Extension

603300

52

Footrest Extension Tread

420904

53

Carriage Bolt

247130

54

Rubber Bumper

424052

55

Special Carriage Bolt

247280

56

Deck Mount Bushing

282575

57

Floating Deck Mount Bushing

282576

58

Nylon Insert Nut

253460

59

Whiz Nut

253043

60

Tool Box

422040

61

600 Series Battery Box

729311

62

Footrest Isolator Block

424100

63

Hex Bolt

243026

64

Compression Spring

283312

65

600 Series Trash Screen

721387

66

Decal Set for 614 with Side Console

604290
