Genuine OEM Grasshopper® Mower Parts Diagrams

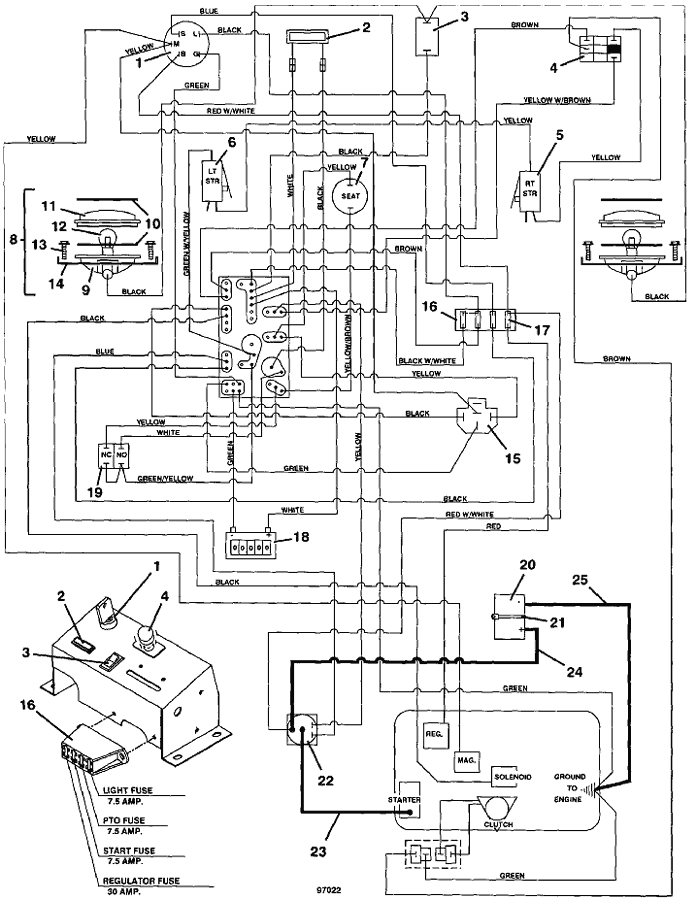

616 • Wiring & Lights
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Indicator Light |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push/Pull Switch |
183925 |
5 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
6 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
7 |
Seat Switch |
183870 |
8 |
Worklamp Assembly |
603400 |
9 |
Rectangular Lamp Housing |
182350 |
10 |
Lamp Assembly Gasket |
420550 |
11 |
Rectangular Lamp Lens |
182400 |
12 |
Worklamp Light Bulb |
182000 |
13 |
#10 Screw |
252057 |
14 |
Worklight Clamp |
720163 |
15 |
12V DC Relay with Mount |
184271 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
16 |
Fuse Block |
181722 |
- |
Fuse ID Decal |
162320 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Fuse Clip |
184472 |
17 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 amp Auto ATC Fuse |
181460 |
- |
10 amp Auto ATC Fuse |
181462 |
18 |
Snap In Hour Meter |
141551 |
- |
Hour Meter Mounting Bracket |
722028 |
19 |
Brake Interlock Switch |
183894 |
20 |
12 Volt Wet Battery |
180125 |
- |
600 Series Battery Box |
729311 |
21 |
Battery Hold-Down Strap |
603110 |
22 |
4 Post Solenoid Relay Switch |
184251 |
23 |
6" Red Battery Cable |
180306 |
24 |
11" Red Battery Cable |
180309 |
- |
Starter Terminal Boot |
425219 |
25 |
20" Black Battery Cable |
180280 |
26 |
614/616 97 Wiring Assembly |
604963 |
27 |
600 Console Decal |
161136 |
Return to 616 Index
