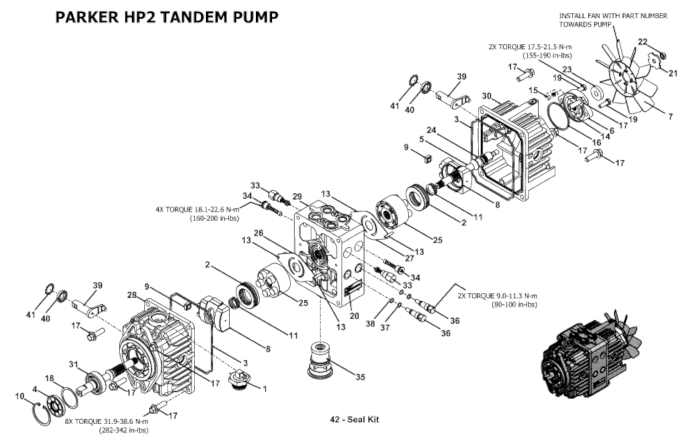

Item # |
Description |
Part Number |
1 |
T2 Expansion Tank Adapter |
130510 |
- |
O-Ring |
126550 |
2 |
T Thrust Bearing |
130412 |
- |
T6 Thrust Bearing |
130512 |
3 |
Seal Ring Housing |
130580 |
4 |
Input Seal |
125370 |
5 |
Pump 2 Shaft |
130578 |
- |
Thru Shaft Seal |
125162 |
6 |
Charge Cover |
130552 |
- |
T6 Charge Cover |
130526 |
7 |
H2 & T Hydro Fan |
130431 |
- |
T6 8.3" Fan |
130434 |
8 |
T Swashblock |
130414 |
- |
T6 Swashblock |
130514 |
9 |
T Control Block |
130416 |
- |
T6 Control Block |
130516 |
10 |
Retaining Ring |
130404 |
11 |
T Center Spring |
130472 |
- |
T6 Center Spring |
130572 |
12 |
Not Available |
000000 |
13 |
Dowel Pin |
130458 |
14 |
T Geroter Set |
130524 |
15 |
Charge Relief Kit |
130427 |
16 |
Charge Cover Seal Ring |
130420 |
17 |
T2 Hex Flange Bolt |
271130 |
18 |
Washer |
130406 |
19 |
Hex HD |
271023 |
20 |
Not Available |
000000 |
21 |
Fan Retainer Washer |
130432 |
22 |
Nylon Insert Nut |
253461 |
23 |
Thru Shaft Seal |
125162 |
24 |
Thrust Washer |
130508 |
25 |
T Piston & Barrel Assembly |
130450 |
- |
T6 Piston & Barrel Assembly |
130550 |
26 |
T Pump 1 Port Plate |
130552 |
- |
T6 Pump 1 Port Plate |
130556 |
27 |
T Pump 2 Port Plate |
130554 |
- |
T6 Pump 2 Port Plate |
130558 |
28 |
T Pump 1 Housing Assembly |
130560 |
- |
Cradle Bearing |
130511 |
- |
T6 Pump 1 Housing Assembly |
130561 |
29 |
T Center Block Assembly |
130538 |
- |
T6 Center Block Assembly |
130540 |
30 |
T Pump 2 Housing Assembly |
130562 |
- |
Cradle Bearing |
130511 |
- |
T6 Pump 2 Housing Assembly |
130563 |
31 |
T Pump 1 Shaft Assembly |
130576 |
32 |
Not Available |
000000 |
33 |
O-Ring |
130447 |
- |
Shock Valve Assembly |
130445 |
34 |
O-Ring |
130447 |
- |
Check Valve Assembly |
130444 |
35 |
Tandem Transmission Filter |
130505 |
36 |
O-Ring |
130518 |
- |
Bypass Valve |
130448 |
- |
Backup Ring |
130517 |
37 |
Backup Ring |
130517 |
38 |
O-Ring |
130518 |
39 |
Trunnion Arm |
130418 |
40 |
12 H1A Trunnion Seal |
125358 |
41 |
Retaining Ring |
130402 |
42 |
Seal Kit |
130500 |
