Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

616T • PTO Shaft & Clutch Assembly

2008

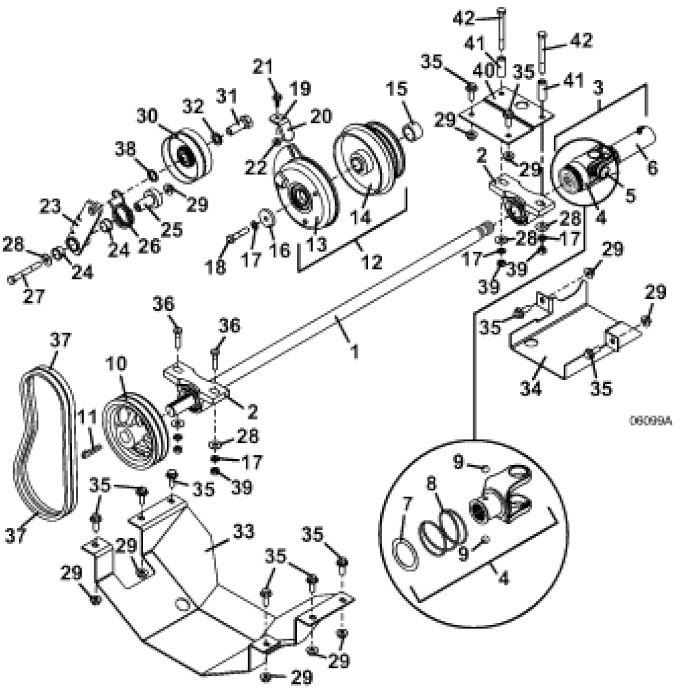

PTO Shaft and Clutch Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

35.5 Power Shaft

393758

2

Pillowblock SC Bearing

122044

-

Set Screw

259305

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401017

7

External Retainer

263660

8

Compression Spring

283525

9

Steel Ball

300014

10

Sheave

415650

11

Gib Square Key

281588

12

Clutch & Bushing Assembly

606239

13

Field Assembly w/Brake - NLA

388873

14

Armature & Rotor Assembly

388864

15

Spacer

902543

16

Washer

883801

17

Lock Washer

257412

18

Hex Bolt

243344

19

Clutch Anti-Rotation Bracket

732407

20

Clutch Bracket Cover

422088

21

Hex Whiz Flange Bolt

253192

22

Whiz Nut

253035

23

Idler Arm Assembly

824474

24

Oilite Bearing

121756

25

Pedestal Bearing

121650

26

Torsion Spring

284426

27

Hex Bolt

243360

28

Washer

257040

29

Whiz Nut

253043

30

Idler

393205

31

Hex Bolt

243805

32

Lock Washer

257452

33

600T Sheave Guard

644421

34

PTO Shaft Shield

729287

35

Whiz Flange Bolt

253203

36

Hex Bolt

243340

37

Belt

381903

38

Washer

257088

39

Nut

254450

40

600T Front Bearing Mount

724910

41

Spacer

902271

42

Hex Bolt

243375
