Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

616T • Wheel Motor & Brake Assembly

2008

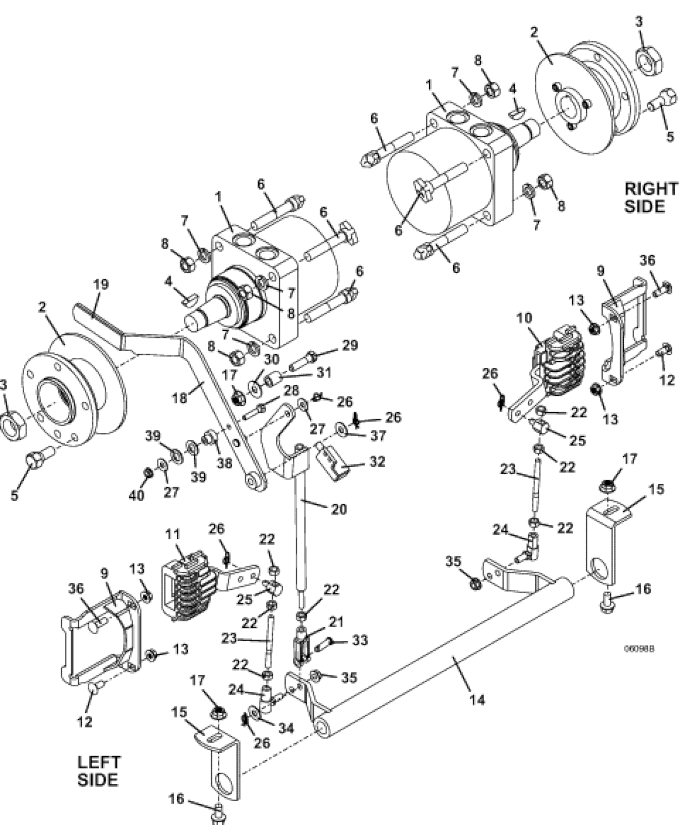

Wheel Motor and Brake Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor Front Port

391475

2

Hub & Rotor Assembly

604439

-

Socket Head Screw

259592

-

6.0 Brake Rotor

775193

3

Nut

254522

4

Woodruff Key

281860

5

Lug Bolt

248565

6

Pin Head Bolt Assembly

604160

7

Lock Washer

257432

8

Nut

254470

9

600T Caliper Mount

644850

10

ClockwiseBrake Assembly

481108

-

Brake Pad Kit

603150

11

Brake Assembly

481109

-

Brake Pad Kit

603150

12

Carriage Bolt

247130

13

Whiz Nut

253035

14

616T Brake Pivot Tube

644595

15

Brake Pivot Mount

732617

16

Whiz Bolt

253200

17

Whiz Nut

253043

18

700/900 Brake Lever

644035

19

Handle Grip

422150

20

Brake Linkage Arm

644057

21

Yoke Clevis

265537

22

Nut

254441

23

Brake Linkage Rod

780158

24

Right Handed Thread Ball Joint

265615

25

Bake Linkage Pin

880926

26

Cotter Ring

260606

27

Washer

257020

28

Hex Bolt

243030

29

Hex Bolt

243340

30

Washer

257040

31

Spacer

902283

32

Brake Interlock Switch

183894

33

Clevis Pin

261284

34

Washer

257030

35

Whiz Nut

253038

36

Carriage Bolt

247135

37

Washer

257030

38

Brake Lever Spacer

881130

39

Washer

257063

40

Whiz Nut

253025
