Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

616T • Tail Wheel Options 1

2009

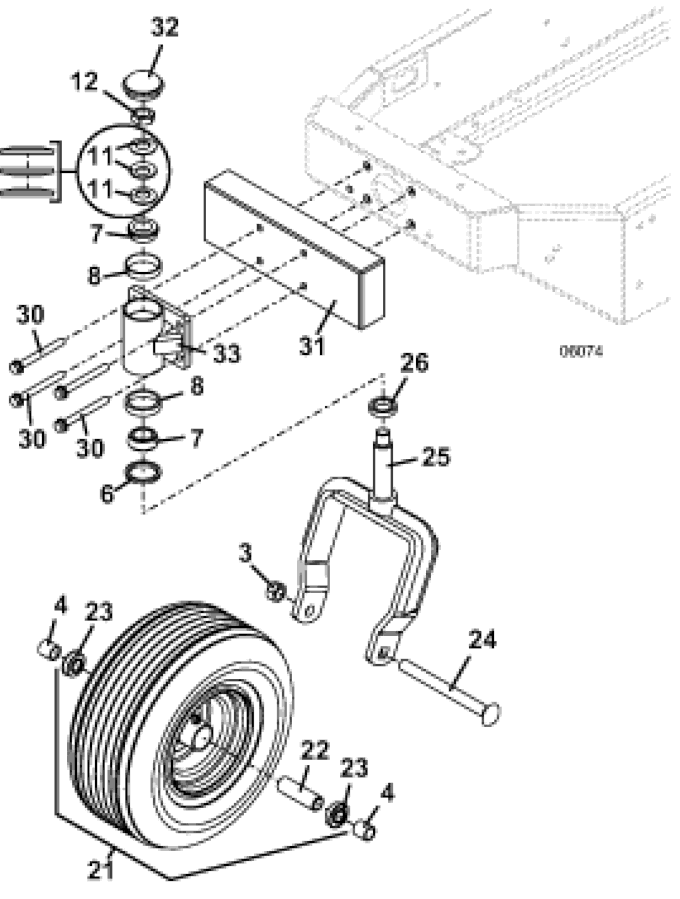

Tail Wheel Options Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902425

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

11

Spring Washer

257320

12

Nylon-Top Jam Lock Nut

254505

21

13 x 6.50 x 6 Wheel & Tire w/Bearing & Spacer

483865

-

13 x 6.50 x 6 Ribbed Tire

482355

-

6 x 4.5 Wheel without Bearings - tan

483306

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247726

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

30

Whiz Bolt

253212

31

600 Series Counterweight

783810

32

Domed Dust Cap

481434

33

RR Fork Pivot Housing Assembly

604596
