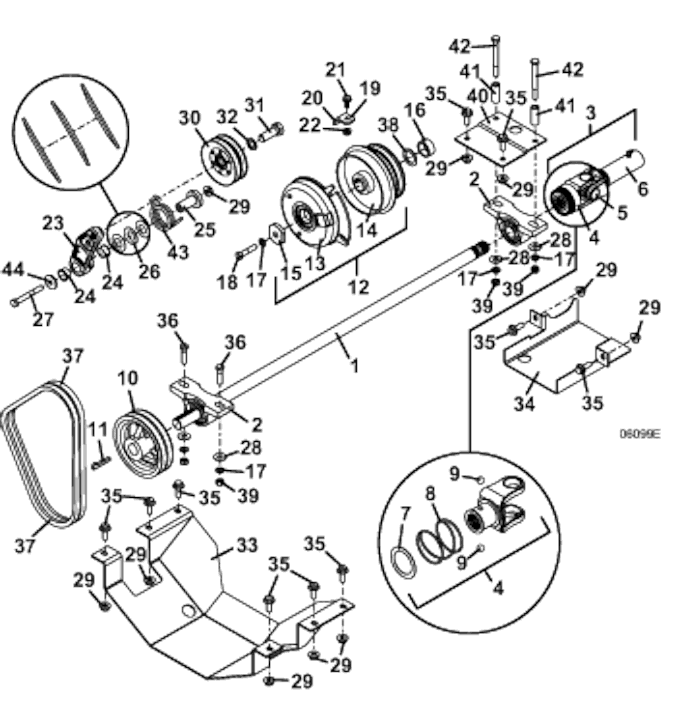

Item # |
Description |
Part Number |
1 |
35.5 Power Shaft |
393758 |
2 |
Pillowblock SC Bearing |
122044 |
- |
Set Screw |
259305 |
3 |
UN Half Sleeve |
398914 |
4 |
QD Splined Yoke |
401019 |
5 |
Cross & Bearing |
121010 |
6 |
Yoke w/Sleeve |
401017 |
7 |
External Retainer |
263660 |
8 |
Compression Spring |
283525 |
9 |
Steel Ball |
300014 |
10 |
Sheave |
415650 |
11 |
Gib Square Key |
281588 |
12 |
Clutch & Bushing Assembly |
606239 |
13 |
Field Assembly w/Brake - NLA |
388873 |
14 |
Armature & Rotor Assembly |
388864 |
15 |
Washer |
257039 |
16 |
Spacer |
902542 |
17 |
Lock Washer |
257412 |
18 |
Hex Bolt |
243344 |
19 |
Clutch Anti-Rotation Bracket |
732407 |
20 |
Clutch Bracket Cover |
422087 |
21 |
Hex Whiz Flange Bolt |
253192 |
22 |
Whiz Nut |
253035 |
23 |
6/700 T/T6 Idler Arm Assembly |
824467 |
24 |
Oilite Bearing |
121756 |
25 |
Pedestal Bearing |
121651 |
26 |
Spring Washer |
257319 |
27 |
Hex Bolt |
243360 |
28 |
Washer |
257040 |
29 |
Whiz Nut |
253043 |
30 |
Idler |
415610 |
31 |
Hex Bolt |
243805 |
32 |
Lock Washer |
257452 |
33 |
600T Sheave Guard |
644421 |
34 |
PTO Shaft Shield |
729287 |
35 |
Whiz Flange Bolt |
253203 |
36 |
Hex Bolt |
243340 |
37 |
Belt |
381914 |
38 |
Washer |
257104 |
39 |
Nut |
254450 |
40 |
600T Front Bearing Mount |
724910 |
41 |
Spacer |
902271 |
42 |
Hex Bolt |
243375 |
43 |
Torsion Spring |
284428 |
44 |
Washer |
774020 |
