Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

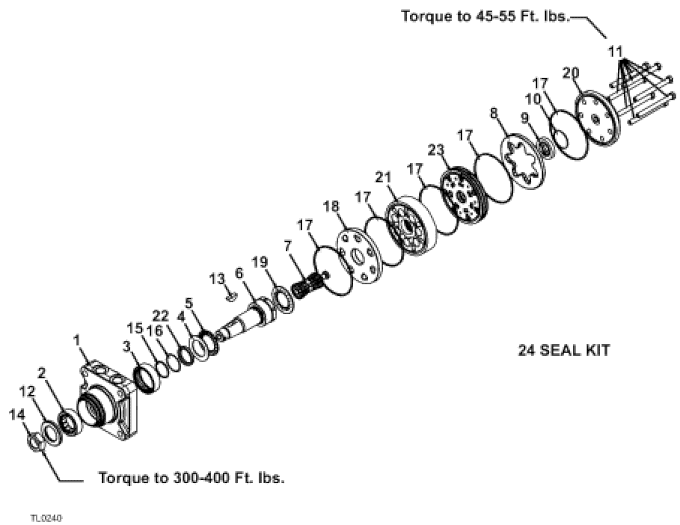

616T • Torque Motor Assembly

2010½

Torque Motor

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Not Available

000000

2

Outer Bearing

130370

3

Inner Bearing

130340

4

Thrust Washer

130346

5

Outer Thrust Bearing

130344

6

T Coupling Shaft

130308

7

T Drive Link

130314

8

Not Available

000000

9

Not Available

000000

10

Commutator Sleeve

130312

11

Not Available

000000

12

Dirt & Water Seal

130315

13

Woodruff key

281860

14

Nut

254522

15

Washer Ring

130306

16

Backup Washer

130305

17

Seal Ring

130386

18

Wear Plate

130330

19

Inner Thrust Bearing

130342

20

Not Available

000000

21

T Rotor Set

130378

22

T Inner Seal

130338

23

Not Available

000000

24

T6 Seal Kit

130385

Return to 616T Index TOP
