Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

616T • Traction Kit

2010½

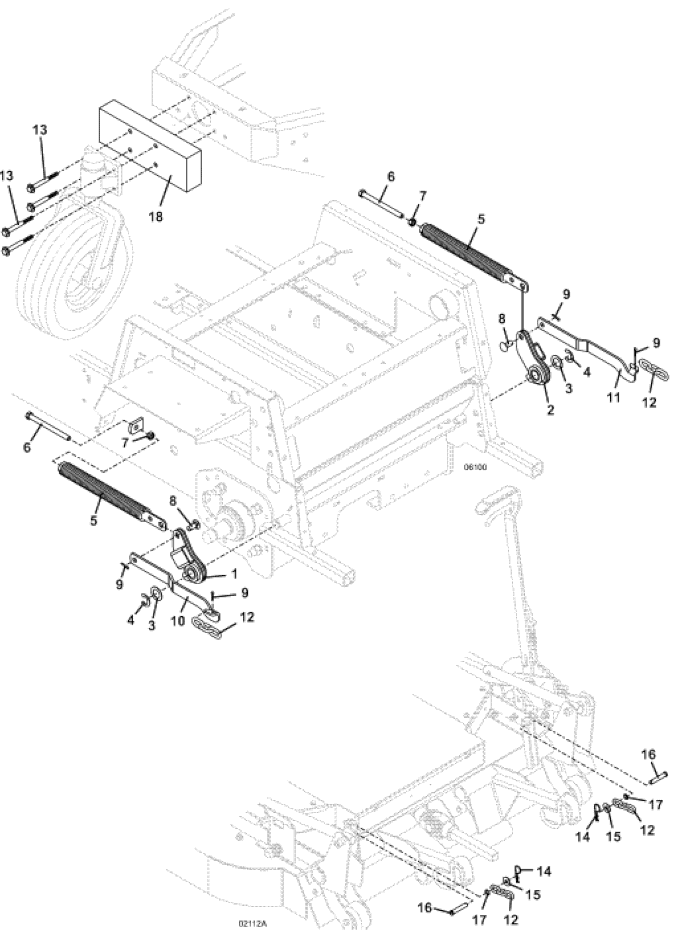

Traction Kit Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

616T Right Rocker

603732

-

Oilite Bearing

121764

2

616T Left Rocker

603733

-

Oilite Bearing

121764

3

18 Gauge Bushing Washer

257092

4

External Retainer

263529

5

Offset Spring and Plug Nut Assembly

604762

6

Hex Bolt

243395

7

Nut

254450

8

Clevis Pin

261339

9

Cotter Pin

260648

10

616T Right Strap Lift

725492

11

616T Left Strap Lift

725493

12

3 Links Lift Chain

820317

13

Whiz Bolt

253212

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push-On Retainer

262950

18

600 Series Counterweight

783810
