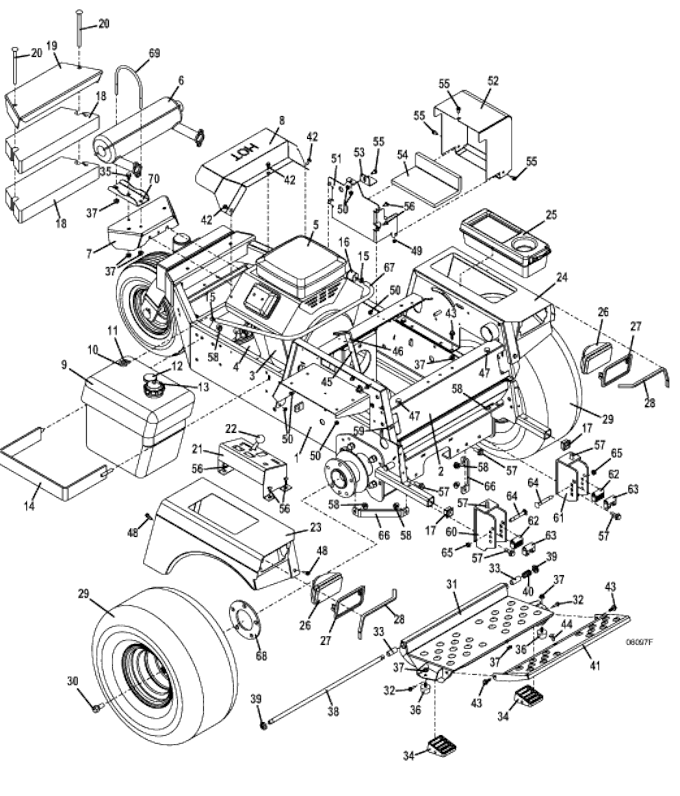

Item # |
Description |
Part Number |
1 |
616T Lower Frame (Please Call for Pricing) |
643878 |
2 |
600T Upper Frame |
643874 |
3 |
16HP Briggs & Stratton Vanguard Front Shaft Engine (Please Call for Pricing) |
100137 |
- |
Hex Whiz Bolt |
253198 |
- |
600T Vanguard Spacer |
901703 |
4 |
Briggs Oil Filter |
100803 |
5 |
Briggs Air Filter |
100920 |
- |
Briggs Air Filter Precleaner |
100921 |
6 |
Silent Muffler |
101207 |
- |
Briggs & Stratton Muffler Exhaust Gasket |
101042 |
7 |
616T Heat Shield |
643922 |
8 |
Muffler Cover |
722991 |
9 |
Fuel Tank Assembly with Draw Tube |
604835 |
10 |
Grommet |
101875 |
11 |
Fuel Tube |
363925 |
12 |
In-Tank Fuel Guage |
141142 |
- |
Grommet |
424275 |
13 |
Fuel Cap |
100210 |
14 |
Fuel Tank Mounting Bracket |
643144 |
15 |
Spring Hose Clamp |
280260 |
16 |
Briggs In-Line Fuel Filter |
366560 |
17 |
1" ID Square Plastic Plug |
422065 |
18 |
34 LB Counterweight |
323933 |
19 |
34 lb. Weight Cover |
729514 |
20 |
Carriage Bolt |
247325 |
21 |
200 Console Panel with Decal |
693115 |
22 |
Mechainical Choke |
142210 |
23 |
600T Right Fender with Decals |
693196 |
- |
616T Right Trim Decal |
163760 |
24 |
620T Left Fender with Decals |
693197 |
- |
616T Left Trim Decal |
163761 |
25 |
Tool Box |
422040 |
26 |
Flood Worklamp |
182253 |
27 |
Snap Mount Worklamp Bezel |
182251 |
28 |
Trim |
822632 |
29 |
Wheel & Turf Tire 20 x 10 x 8 |
483921 |
- |
Turf Tire 20 x 10 x 8 |
482472 |
- |
Bar Tread Tire 21 x 11 x 8 |
482478 |
- |
5 Bolt Wheel Turf |
483410 |
- |
5 Bolt Wheel Bar |
483415 |
- |
Right Wheel & Bar Tread Tire 21 x 11 x 8 |
483930 |
- |
Left Wheel & Bar Tread Tire 21 x 11 x 8 |
483931 |
30 |
Lug Bolt |
248565 |
31 |
620T Adjustable Foot Platform Assembly |
604348 |
32 |
Hex Bolt |
243026 |
33 |
Nylon Bearing |
422615 |
34 |
Footrest Isolator Block |
424100 |
35 |
Flanged Hex Whiz Bolt |
253191 |
36 |
Rubber Bumper |
424052 |
37 |
Whiz Nut |
253035 |
38 |
Footrest Pivot Rod |
780656 |
39 |
Nylon Insert Nut |
253470 |
40 |
Compression Spring |
283312 |
41 |
600 Foot Platform Extension |
643305 |
42 |
Hex Bolt |
270821 |
43 |
Hex Flange Whiz Bolt |
253192 |
44 |
Carriage Bolt |
247130 |
45 |
Throttle Assembly |
603856 |
- |
Control Cable Assembly |
323640 |
- |
Throttle Lever Stop |
722009 |
- |
Heavy Duty Throttle Lever Stop |
722736 |
46 |
Handle Grip |
422150 |
47 |
Rubber Bumper |
424015 |
48 |
Hex Whiz Bolt |
253175 |
49 |
Nylon Insert Nut |
253440 |
50 |
Whiz Nut |
253025 |
51 |
G2 AC Battery Box |
644099 |
52 |
AC Battery Cover |
644162 |
53 |
Battery Clamp |
729001 |
54 |
Battery Tray Pad |
427273 |
55 |
Hex Whiz Bolt |
253173 |
56 |
Truss Whiz Bolt |
253176 |
57 |
Whiz Flange Bolt |
253203 |
58 |
Whiz Nut |
253043 |
59 |
Speed Nut |
254431 |
60 |
600 QD Right Deck Mount |
643894 |
61 |
600 QD Left Deck Mount |
643895 |
62 |
Deck Mount Bushing |
282575 |
63 |
Floating Deck Mount Bushing |
282576 |
64 |
Special Carriage Bolt |
247280 |
65 |
Nylon Insert Nut |
253460 |
66 |
Crossmember Strap |
732824 |
67 |
Fuel Hose |
821770 |
68 |
5 Bolt Wheel Spacer |
776295 |
69 |
U-Bolt |
321246 |
70 |
Exhaust Clamp |
724971 |
71 |
616T Decal Set |
605538 |
