616T • Wheel Motor & Brake Assembly

2010½

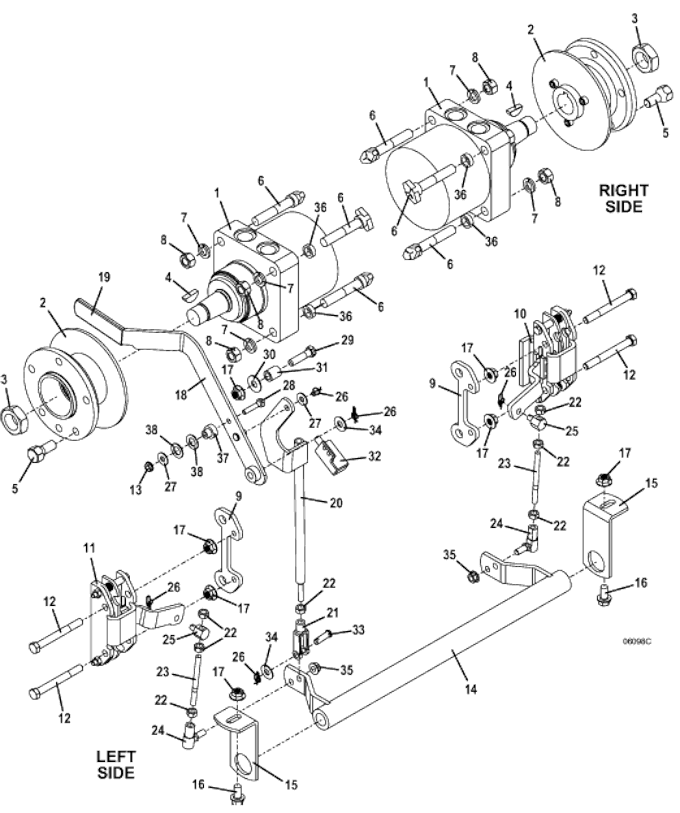

Wheel Motor and Brake Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor Front Port

391475

2

616T Hub & Rotor Assembly

604438

-

Socket Head Screw

259592

-

6.0 Brake Rotor

775193

3

Nut

254522

4

Woodruff Key

281860

5

Lug Bolt

248565

6

Diamond Head Bolt

243597

7

Lock Washer

257432

8

Nut

254470

9

600T Brake Mount

777505

10

600 Right Brake Assembly

481142

-

Brake Pad Kit

481160

11

600 Left Brake Assembly

481143

-

Brake Pad Kit

481160

12

Hex Bolt

243375

13

Whiz Nut

253025

14

616T Brake Pivot Tube

644595

15

Brake Pivot Mount

732617

16

Whiz Bolt

253200

17

Whiz Nut

253043

18

700/900 Brake Lever

644035

19

Handle Grip

422150

20

Brake Linkage Arm

644057

21

Yoke Clevis

265537

22

Nut

254441

23

Brake Linkage Rod

780158

24

Right Handed Thread Ball Joint

265615

25

Bake Linkage Pin

880926

26

Cotter Ring

260606

27

Washer

257020

28

Hex Bolt

243030

29

Hex Bolt

243340

30

Washer

257040

31

Spacer

902283

32

Brake Interlock Switch

183894

33

Clevis Pin

261284

34

Washer

257030

35

Whiz Nut

253038

36

Wheel Motor Spacer

902286

37

Brake Lever Spacer

881130

38

Washer

257063
