616T • Wiring Diagram

2010½

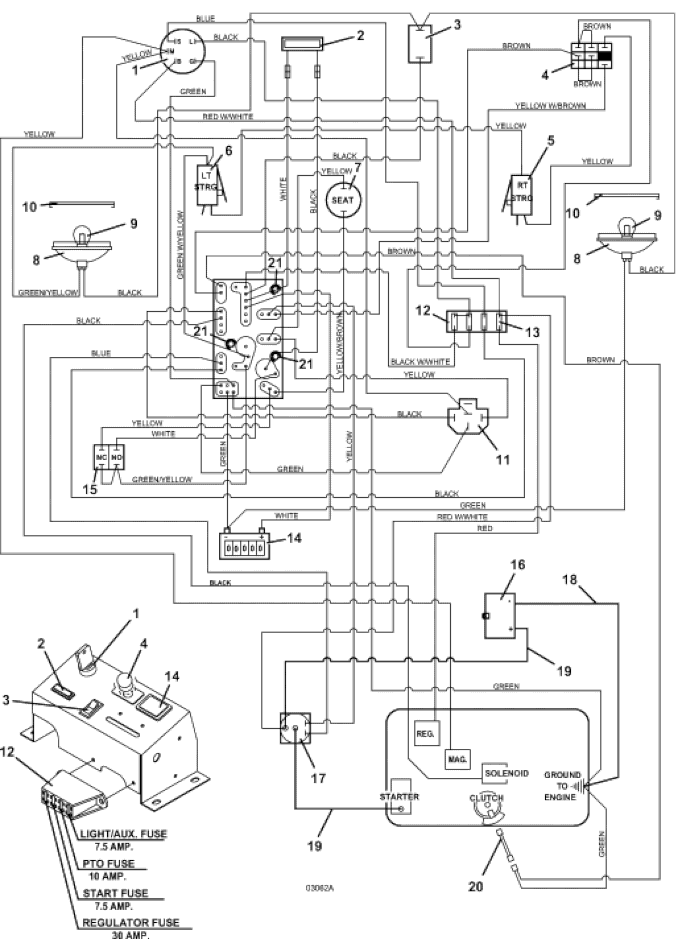

616T 2009 Wiring Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Rocker Switch

184179

4

Push/Pull Switch

183925

5

Lever Switch

183860

-

Steering Switch Mount - right

720160

6

Lever Switch

183860

-

Steering Switch Mount - left

720161

7

Twist-in Seat Switch

183871

8

Flood Worklamp

182253

9

Light Bulb for Headlight

182005

10

Snap Mount Worklamp Bezel

182251

11

12V DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

12

Fuse Block

181722

-

Fuse ID Decal

162320

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

13

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

14

Snap In Hour Meter

141551

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

G2 AC Battery Box

644099

-

AC Battery Cover

644162

-

Battery Clamp

729001

17

4 Post Solenoid Switch Relay

184251

18

16" Black Battery Cable

180276

19

11" Red Battery Cable

180309

-

Starter Terminal Boot

425219

20

Pigtail Cable Assembly

388840

21

PC Board Support Spacer

423690

22

616 2003 Wiring Assembly

604985

23

Console Decal

161141

Return to 616T Index TOP
