616T • Drive Assembly

2010

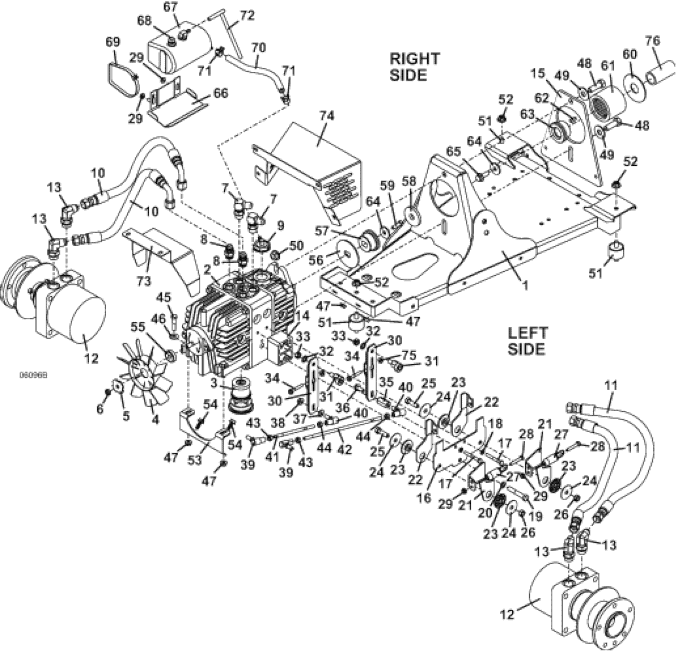

Drive Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600T Drive Train Mount

643945

2

Parker Tandem Hydro

391467

3

Tandem Transmission Filter

130505

4

H2 & T Hydro Fan

130431

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

O-Ring Adapter

360061

8

O-Ring Adapter

360059

9

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

10

Hose Assembly

424338

11

Hose Assembly

424352

12

Wheel Motor Front Port

391475

-

616T Hub & Rotor Assembly

604438

13

90 Degree Adapter Fitting

360078

14

Return Plastic Spacer

422039

15

Tandem Pump Mount Spacer

775123

16

Return Mount

729542

17

Hex Bolt

243045

18

Lock Washer

257392

19

Hex Bolt

243350

20

Lock Washer

257412

21

Return Arm

729639

22

Neutral Return Arm

729398

23

Neutral Return Pivot Bearing

822304

24

Fender Washer

257044

25

Hex Bolt

243335

26

Lock Nut

253890

27

Extension Spring

283823

28

Hex Bolt

243035

29

Whiz Nut

253025

30

Tandem Neutral Return Arm

644862

31

600T Eccentric Roller Assembly

603729

32

External Star Washer

257410

33

Nut

254450

34

Hex Bolt

270832

35

Neutral Return Spacer

783730

36

Hex Whiz Bolt

253186

37

Flat Washer

257019

38

Whiz Nut

253038

39

Right Handed Thread Ball Joint

265615

40

Left Handed Thread Ball Joint

265616

41

Steering Link Rod

780151

42

600T Steering Link Rod

780153

43

Nut

254441

44

Nut

254444

45

Hex Bolt

243215

46

Washer

257030

47

Whiz Nut

253035

48

Hex Bolt

243565

49

Washer

257060

50

Whiz Nut

253066

51

Vibration Isolator

424079

52

Whiz Nut

253043

53

Tandem Pump Front Mount

729529

54

Flanged Hex Whiz Bolt

253192

55

H2 Fan Hub

130430

56

DD Washer

774175

57

Coupler Hub

388577

58

Coupling Stabilizer

424150

59

Hex Bolt

243206

60

3" OD Washer

774176

61

Nylon Coupler Sleeve

388560

62

Square Key

281580

63

Coupler Hub

388578

64

Washer

774020

65

Flanged Whiz Bolt

253203

66

Oil Reservoir Bracket

644094

67

Hydro Expansion Tank

422033

68

3/8" Threaded Plastic Plug

365516

69

Tie

423154

70

Hydro Expansion Hose

821709

71

Hose Spring Clamp

280264

72

Clear Vent Hose

821723

73

600T Fan Shroud

722969

74

616T Coupler Shield

722972

75

Whiz Nut

274114

76

Spacer

902555
