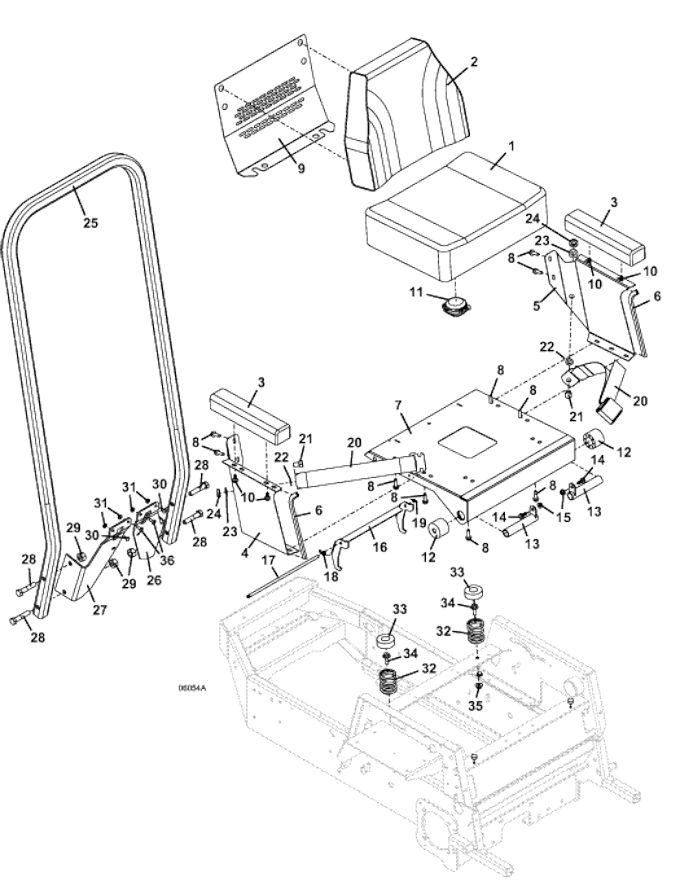

Item # |
Description |
Part Number |
1 |
Vinyl Seat Cushion |
321517 |
2 |
Back Cushion |
321511 |
3 |
Seat Arm Rest |
321501 |
4 |
right Seat Side with Armrest Mount |
723386 |
5 |
left Seat Side with Armrest Mount |
723387 |
6 |
Seat Edge Trim |
822630 |
7 |
600 Adjustable Seat Mount |
643890 |
8 |
Hex Flange Whiz Bolt |
253193 |
9 |
Back Panel |
722388 |
10 |
Hex Flange Whiz Bolt |
253191 |
11 |
Twist-In Seat Switch |
183871 |
12 |
Seat Isolator |
424095 |
13 |
Seat Hinge Pin |
644618 |
14 |
Hex Flange Whiz Bolt |
253192 |
15 |
Whiz Nut |
253035 |
16 |
600 Seat Dual Latch |
754234 |
17 |
Seat Latch Pivot Pin |
730230 |
18 |
Torsion Spring |
284408 |
19 |
Cotter Ring |
260606 |
20 |
Non Retracting Seat Belt |
324200 |
21 |
Hex Bolt |
243551 |
22 |
Washer |
257063 |
23 |
Washer |
257062 |
24 |
Nylon Insert Nut |
253470 |
25 |
600 OPS Tube |
324107 |
26 |
left 600 OPS Gusset |
729358 |
27 |
right 600 OPS Gusset |
729359 |
28 |
Hex Bolt |
243591 |
29 |
Lock Nut |
253930 |
30 |
Truss Whiz Bolt |
253176 |
31 |
Whiz Nut |
253025 |
32 |
Compression Spring |
283516 |
33 |
Seat Spring Cap |
422127 |
34 |
Whiz Flange Bolt |
253203 |
35 |
Whiz Nut |
253043 |
36 |
Truss Whiz Bolt |
253177 |
