616T • Tractor Assembly

2010

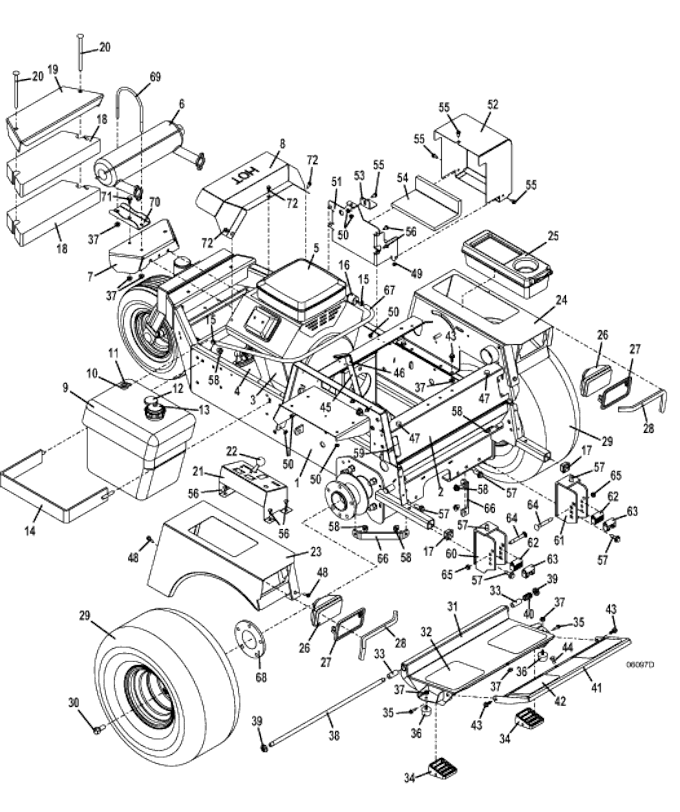

Tractor Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

616T Lower Frame (Please Call for Pricing)

643878

2

600T Upper Frame

644874

3

16HP Briggs & Stratton Vanguard Front Shaft Engine (Please Call for Pricing)

100137

-

Hex Whiz Bolt

253198

-

600T Vanguard Spacer

901703

4

Briggs Oil Filter

100803

5

Briggs Air Filter

100920

-

Briggs Air Filter Precleaner

100921

6

Muffler & Support Assembly

603592

-

Silent Muffler

101207

-

Briggs & Stratton Muffler Exhaust Gasket

101042

7

616T Heat Shield

643922

8

Muffler Cover

722991

-

600 Muffler Shield

722266

9

Fuel Tank Assembly with Draw Tube

604835

10

Grommet

101875

11

Fuel Tube

363925

12

In-Tank Fuel Guage

141142

-

Grommet

424275

13

Fuel Cap

100210

14

Fuel Tank Mounting Bracket

643144

15

Spring Hose Clamp

280260

16

Briggs In-Line Fuel Filter

366560

17

1" ID Square Plastic Plug

422065

18

34 LB Counterweight

323933

19

34 lb. Weight Cover

729514

20

Carriage Bolt

247325

21

200 Console Panel with Decal

693115

22

Mechainical Choke

142210

23

620T Right Fender with Decals

693198

-

616T Right Trim Decal

163440

24

620T Left Fender with Decals

693199

-

616T Left Trim Decal

163441

25

Tool Box

422040

26

Flood Worklamp

182253

27

Snap Mount Worklamp Bezel

182251

28

Trim

822632

29

Wheel & Turf Tire 20 x 10 x 8

483921

-

Turf Tire 20 x 10 x 8

482472

-

Bar Tread Tire 21 x 11 x 8

482478

-

5 Bolt Wheel Turf

483410

-

5 Bolt Wheel Bar

483415

-

Right Wheel & Bar Tread Tire 21 x 11 x 8

483930

-

Left Wheel & Bar Tread Tire 21 x 11 x 8

483931

30

Lug Bolt

248565

31

620T Adjustable Foot Platform Assembly

604348

32

Foot Rest Tread

420905

33

Nylon Bearing

422615

34

Footrest Isolator Block

424100

35

Hex Bolt

243026

36

Rubber Bumper

424052

37

Whiz Nut

253035

38

Footrest Pivot Rod

780656

39

Nylon Insert Nut

253470

40

Compression Spring

283312

41

600 Foot Platform Extension

603300

42

Foot Rest Extension Tread

420904

43

Hex Flange Whiz Bolt

253192

44

Carriage Bolt

247130

45

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Lever Stop

722736

46

Handle Grip

422150

47

Rubber Bumper

424015

48

Hex Whiz Bolt

253175

49

Nylon Insert Nut

253440

50

Whiz Nut

253025

51

G2 AC Battery Box

644099

52

AC Battery Cover

644162

53

Battery Clamp

729001

54

Battery Tray Pad

427273

55

Hex Whiz Bolt

253173

56

Truss Whiz Bolt

253176

57

Whiz Flange Bolt

253203

58

Whiz Nut

253043

59

Speed Nut

254431

60

600 QD Right Deck Mount

643894

61

600 QD Left Deck Mount

643895

62

Deck Mount Bushing

282575

63

Floating Deck Mount Bushing

282576

64

Special Carriage Bolt

247280

65

Nylon Insert Nut

253460

66

Crossmember Strap

732824

67

Fuel Hose

821770

68

5 Bolt Wheel Spacer

776295

69

U-Bolt

321246

70

Exhaust Clamp

724971

71

Flanged Hex Whiz Bolt

253191

72

Hex Bolt

270821

73

616T Decal Set

604239

Return to 616T Index TOP
