Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

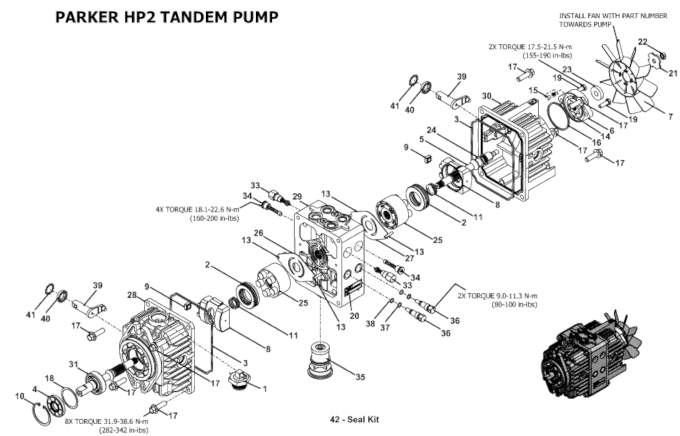

616T • Parker HP2 Tandem Pump Assembly

2013

H2 Tandem Pump

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

T2 Expansion Tank Adapter

130510

-

O-Ring

126550

2

T Thrust Bearing

130412

-

T6 Thrust Bearing

130512

3

Seal Ring Housing

130580

4

Input Seal

125370

5

Pump 2 Shaft

130578

-

Thru Shaft Seal

125162

6

Charge Cover

130552

-

T6 Charge Cover

130526

7

H2 & T Hydro Fan

130431

-

T6 8.3" Fan

130434

8

T Swashblock

130414

-

T6 Swashblock

130514

9

T Control Block

130416

-

T6 Control Block

130516

10

Retaining Ring

130404

11

T Center Spring

130472

-

T6 Center Spring

130572

12

Not Available

000000

13

Dowel Pin

130458

14

T Geroter Set

130524

15

Charge Relief Kit

130427

16

Charge Cover Seal Ring

130420

17

T2 Hex Flange Bolt

271130

18

Washer

130406

19

Hex HD

271023

20

Not Available

000000

21

Fan Retainer Washer

130432

22

Nylon Insert Nut

253461

23

Thru Shaft Seal

125162

24

Thrust Washer

130508

25

T Piston & Barrel Assembly

130450

-

T6 Piston & Barrel Assembly

130550

26

T Pump 1 Port Plate

130552

-

T6 Pump 1 Port Plate

130556

27

T Pump 2 Port Plate

130554

-

T6 Pump 2 Port Plate

130558

28

T Pump 1 Housing Assembly

130560

-

Cradle Bearing

130511

-

T6 Pump 1 Housing Assembly

130561

29

T Center Block Assembly

130538

-

T6 Center Block Assembly

130540

30

T Pump 2 Housing Assembly

130562

-

Cradle Bearing

130511

-

T6 Pump 2 Housing Assembly

130563

31

T Pump 1 Shaft Assembly

130576

32

Not Available

000000

33

O-Ring

130447

-

Shock Valve Assembly

130445

34

O-Ring

130447

-

Check Valve Assembly

130444

35

Tandem Transmission Filter

130505

36

O-Ring

130518

-

Bypass Valve

130448

-

Backup Ring

130517

37

Backup Ring

130517

38

O-Ring

130518

39

Trunnion Arm

130418

40

12 H1A Trunnion Seal

125358

41

Retaining Ring

130402

42

Seal Kit

130500
