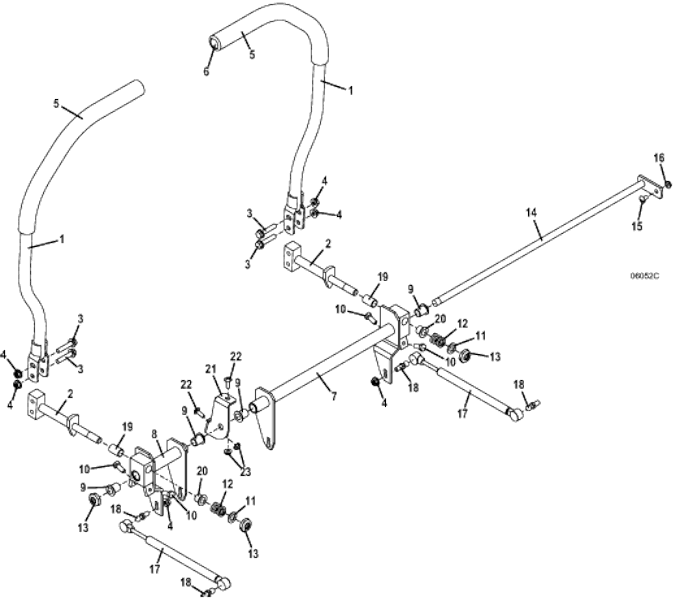

Item # |
Description |
Part Number |
1 |
Steering Lever Assembly - Wide STD |
604777 |
2 |
Adjustable Steering Lever Mount |
643926 |
3 |
Hex Flange Whiz Bolt |
253195 |
4 |
Whiz Nut |
253035 |
5 |
Handle Grip |
422179 |
6 |
.75 ID Vinyl Cap |
422095 |
7 |
618T right Steering Pivot with Stop & Bearings |
604808 |
8 |
618T left Steering Pivot with Stop & Bearings |
604809 |
9 |
Sleeve Bearing w/Flange |
422559 |
10 |
Hex Bolt |
243197 |
11 |
Washer |
257063 |
12 |
Compression Spring |
283324 |
13 |
Nylon Insert Nut |
253470 |
14 |
Steering Pivot |
644589 |
15 |
Truss Whiz Bolt |
253176 |
16 |
Whiz Nut |
253025 |
17 |
Reverse Damper with Ball Socket |
285032 |
18 |
Ball Stud |
265680 |
19 |
Sleeve Bearing |
422557 |
20 |
Sleeve Bearing with Flange |
422556 |
21 |
600T Steering Rod Support |
729664 |
22 |
Truss Phillips Whiz Bolt |
253179 |
23 |
Whiz Nut |
253025 |
