616T • Tail Wheel Options 2

2014

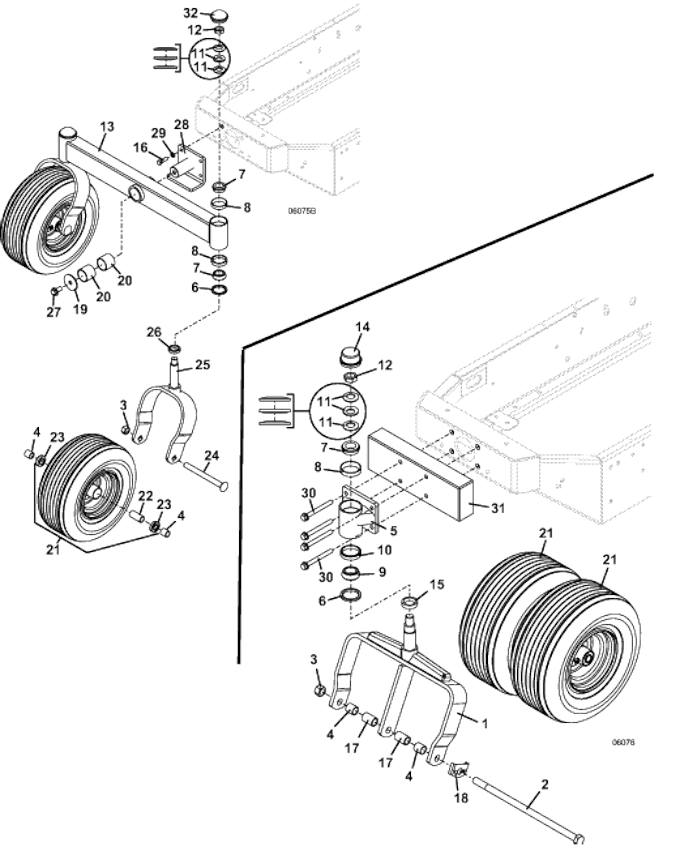

Tail Wheel Options Group 2 Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt/p>

243922

3

Lock Nut

253970

4

Axle Spacer

902425

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Nylon-Top Jam Lock Nut

254505

13

Dual Wheel Beam

824510

14

Dust Cap

481432

15

Spacer

830420

16

GR 8 Hex Bolt

243334

17

Dual Wide Tire Spacer

902427

18

Fork Bolt Lock

723008

19

Washer

257061

20

Reamed Oilite Bearing

833275

21

13 x 6.50 x 6 Wheel & Tire w/Bearing & Spacer

483865

-

13 x 6.50 x 6 Ribbed Tire

482355

-

6 x 4.5 Wheel without Bearings - tan

483306

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247726

25

Tailwheel Fork with Tapered Bearings

645221

26

Spacer

282615

27

Whiz Bolt

253243

28

Rear Axle Pivot Assembly

604597

29

Lock Washer

257412

30

Whiz Bolt

253212

31

600 Series Counterweight

783810

32

Domed Dust Cap

481434
