616T • Tractor Assembly

2014

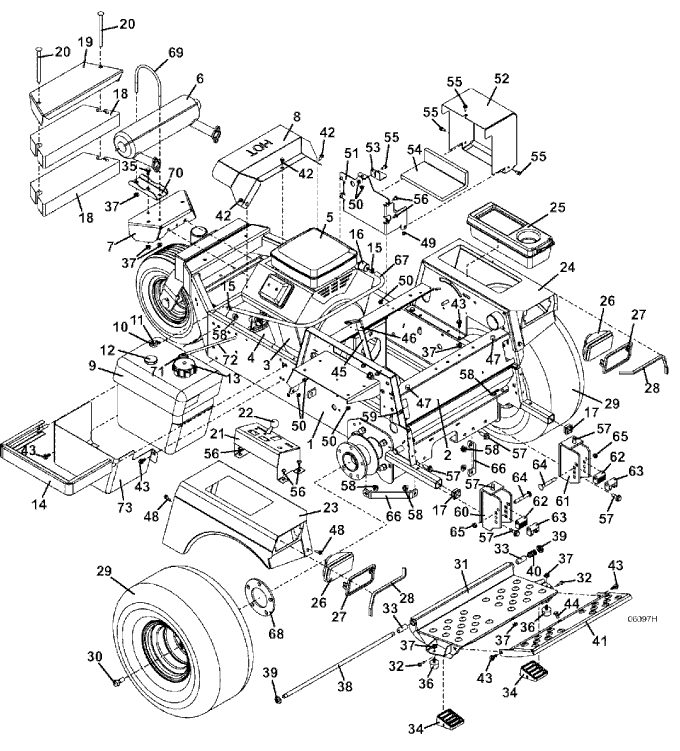

Tractor Assembly Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

616T Lower Frame (Please Call for Pricing)

643878

2

600T Upper Frame

643874

3

16HP Briggs & Stratton Vanguard Front Shaft Engine (Please Call for Pricing)

100137

-

Hex Whiz Bolt

253198

-

600T Vanguard Spacer

901703

4

Briggs Oil Filter

100803

5

Briggs Air Filter

100920

-

Briggs Air Filter Precleaner

100921

6

616 Silent Muffler with Gasket

603586

-

Briggs & Stratton Muffler Exhaust Gasket

101042

7

616T Heat Shield

643922

8

Muffler Cover

722991

9

Front Mount Gas Tank Assembly

605792

10

Grommet

101875

11

Fuel Tube

363925

12

In-Tank Fuel Guage

141142

-

Grommet

424275

13

Internal Sealed Tether Fuel Cap

100212

14

Tank Mount

645826

15

Spring Hose Clamp

280260

16

Briggs In-Line Fuel Filter

366560

17

1" ID Square Plastic Plug

422065

18

34 LB Counterweight

323933

19

34 lb. Weight Cover

729514

20

Carriage Bolt

247325

21

200 Console Panel with Decal

693115

22

Mechainical Choke

142210

23

600T Right Fender with Decals

693196

24

620T Left Fender with Decals

693197

25

Tool Box

422040

26

Flood Worklamp

182253

27

Snap Mount Worklamp Bezel

182251

28

Trim

822632

29

Wheel & Turf Tire 20 x 10 x 8

483921

-

Turf Tire 20 x 10 x 8

482472

-

Bar Tread Tire 21 x 11 x 8

482478

-

5 Bolt Wheel Turf

483410

-

5 Bolt Wheel Bar

483415

-

Right Wheel & Bar Tread Tire 21 x 11 x 8

483930

-

Left Wheel & Bar Tread Tire 21 x 11 x 8

483931

30

Lug Bolt

248565

31

620T Adjustable Foot Platform Assembly

604348

32

Hex Bolt

243026

33

Nylon Bearing

422615

34

Footrest Isolator Block

424100

35

Flanged Hex Whiz Bolt

253191

36

Rubber Bumper

424052

37

Whiz Nut

253035

38

Footrest Pivot Rod

780656

39

Nylon Insert Nut

253470

40

Compression Spring

283312

41

600 Foot Platform Extension

643305

42

Hex Bolt

270821

43

Hex Flange Whiz Bolt

253192

44

Carriage Bolt

247130

45

Throttle Assembly

603856

-

Control Cable Assembly

323640

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Lever Stop

722736

46

Handle Grip

422150

47

Rubber Bumper

424015

48

Hex Whiz Bolt

253175

49

Nylon Insert Nut

253440

50

Whiz Nut

253025

51

G2 AC Battery Box

644099

52

AC Battery Cover

644162

53

Battery Clamp

729001

54

Battery Tray Pad

427273

55

Hex Whiz Bolt

253173

56

Truss Whiz Bolt

253176

57

Whiz Flange Bolt

253203

58

Whiz Nut

253043

59

Speed Nut

254431

60

600 QD Right Deck Mount

643894

61

600 QD Left Deck Mount

643895

62

Deck Mount Bushing

282575

63

Floating Deck Mount Bushing

282576

64

Special Carriage Bolt

247280

65

Nylon Insert Nut

253460

66

Crossmember Strap

732824

67

Fuel Hose

821770

68

5 Bolt Wheel Spacer

776295

69

U-Bolt

321246

70

Exhaust Clamp

724971

71

Fuel Tank Valve Kit

606830

72

Fuel Vapor Hose

821757

73

Tank Shield

751350

74

616T Decal Set

605538

Return to 616T Index TOP
